With web based control

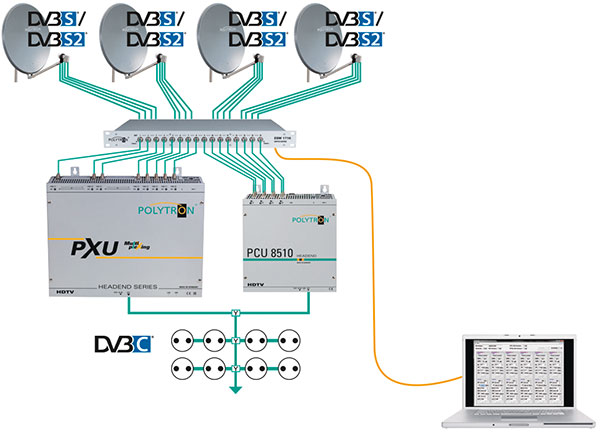

POLYTRON’s switch matrix ESM 1716 flexibly supplies SAT IF and terrestrial signals to signal processing and distribution systems, monitoring and recording systems as well as test stations.
The web based control of the switch matrix allows easy and quick adaption of the output signal to changed requirements. The input distribution of the switch matrix remains unchanged.
The switching matrix features 16 satellite inputs and a terrestrial input. The selected polarization levels are available at 16 outputs.

• Made in Germany
• version with redundant power supply available: ESM 1716 WEB RS (Article no. 5552286)
• version without webbrowser functionality for a fix multiswitch operation available: ESM 1716 FX (Article no. 5552290

Range of application

E.G. as input distribution panel for headend systems:

• Quick reaction to changed transponder frequencies.
• Easy customization of the program offer (e.g. foreign language programs in hotels).
• Easy activation of smart cards, whose activation data are on a different transponder.

There are many ways to receive television and radio programmes via a shared distribution system - each of them with specific advantages and disadvantages. Headend technology with channel processing is a very cost-effective alternative, especially for apartment blocks, office buildings, hotels, guest houses, hospitals, retirement homes, etc. with their small to medium-sized distribution systems.

Thanks to careful construction and the use of high-quality components, POLYTRON headends are extremely durable and fail-safe. The design, optimised for low consumption, also results in low energy consumption and therefore lower electricity costs, which further increases the cost-effectiveness of the investment in view of many years of continuous operation.

DVB-S/S2, DVB-T/T2 and DVB-C signals into IP streams.

The integrated CI slots allow the central decryption of the received contents. The multiplexing function allows to create new output signals with content from different input channels.

8x DVB-S/S2 / DVB-T/T2 / DVB-C in IP Streamer

The IPTV compact headend PCU 8130 converts DVB-S/S2, DVB-T/T2 and DVB-C signals into IP streams. The output signal is available for all subscribers of the IP network and can be received directly by PCs with appropriate software, IPTV capable TV sets or set-top boxes supporting the "DVB-IPTV" standard.

4x DVB-S/S2 / DVB-T/T2 / DVB-C in IP Streamer

The IPTV compact headend PCU 4131 converts DVB-S/S2, DVB-T/T2 and DVB-C signals into IP streams. The integrated CI slots allow the central decryption of the received contents.

8x DVB-S/S2, DVB-T/T2, DVB-C in DVB-T with 4 CI and Multiplexing

Die neue Kompakt-Kopfstelle PXU 848 T setzt die Inhalte von acht SAT-Transpondern, terrestrischen oder Kabelkanälen in DVB-T (COFDM) um. Die Multi­plexing Funktion ermöglicht das Erzeugen neuer Ausgangskanäle mit Inhalten aus verschiedenen Eingangs­transpondern.

8x DVB-S/S2, DVB-T/T2, DVB-C in DVB-C mit 4 CI und Multiplexing

The new multiplexing headend PXU 848 C converts the content of eight SAT, terrestrial or cable network channels into DVB-C (QAM).

Multiplexing Compact Headends with 8 Triple Tuners and 4 CI ports

The multiplexing headends PXU 848 C and PXU 848 T convert the content of eight SAT, terrestrial or cable network channels into DVB-C (QAM) or DVB-T (COFDM). The multiplexing function allows to create new output channels with content from different input channels..

PCU 848 C - Conversion into DVB-C (QAM)    PCU 848 T - Conversion into DVB-T (COFDM)
