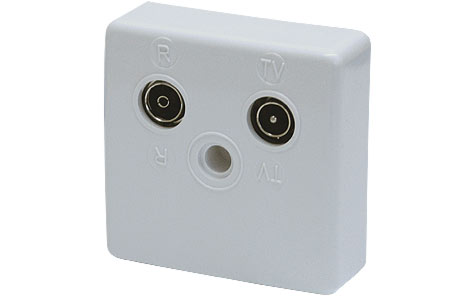

Rejection filter adaptor for 2 hole and 3 hole antenna outlets. BSK 0 and BSK 10 for blocking of CATV supply, BSK K... for providing selected programs.
- for channel rejection in CATV systems
- individual setting of level 0 ... 20 dB for optimal rejection
- for direct mounting onto wall outlets conforming to DIN 45330
- fixed and locked with special screw and locking disc that can only be removed by desctruction of the disc
| Technische Daten / Technical data | |||
| Typ / Type |
BSK K2-S38
|
BSK K2-4 / 5-8
|
BSK K2-4 / 5-12
|
| Artikel-Nr. / Article no. |
2576100
|
2571000
|
2571100
|
| Durchlassbereich / Pass range |
K2-S38
|
K2-K4/K5-K8
|
K2-K4/K5-K12
|
| Sperrbereich / Rejection range |
K21-K69
|
S2-S9/K10-K69
|
S2-S9/S12-K69
|
| Sperrdämpfung / Rejection loss |
≥ 40 dB
|
≥ 40 dB
|
≥ 40 dB
|
| Trennkanäle / Separation channels |
S 39
|
S10/K9
|
S2/S10/S11
|
| Durchgangsdämpfung / Through loss |
≤ 3 dB
|
||
| FM-Durchlassbereich / FM pass range |
0,1-108 MHz
|
||
| FM-Durchg.dämpfung / FM through loss |
≤ 1 dB
|
||
| Übersprechen RF/TV / Isolation RF/TV |
≥ 40 dB
|
||
| Schirmungsmaß / Screening factor |
0-450 MHz: ≥ 75 dB ; 470-862 MHz: ≥ 65 dB
|
||
| Maße (BxHxT) / Dimensions (WxHxD) |
65 x 65 x 22 mm
|
||
| Gewicht / Weight |
0,14 kg
|
||
