Plastic bracket for wall mounting included in delivery
5-2400 MHz 1-way splitter 10 dB
Key Features:
- Excellent amplitude frequency response
- High shielding factor >100 dB thanks to fully soldered housing
- Hum-decoupled by isolating capacitors
- Plastic bracket for wall mounting included in delivery
- Slotted hole mounting
- Ground terminal 4 mm²
| ⏩ | View product in our shop |
| Technische Daten / Technical data | |
| Typ / Type |

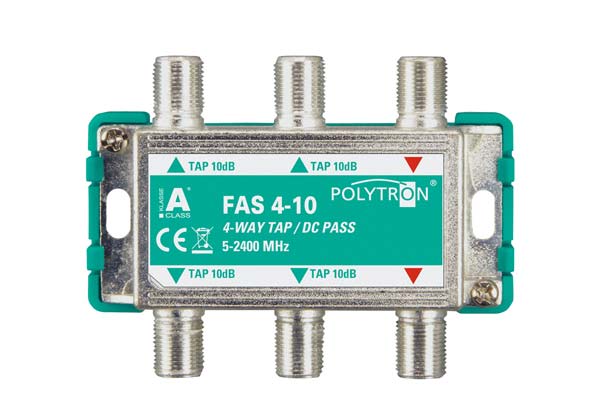

FAS 4-10
|
| Artikel-Nr. / Article no. | 3262510 |
| Abzweiger / Tap | 4-fach / 4-way |
| Durchgangsdämpfung (IN-OUT) 5-862 MHz | 4,5 dB |
| Through loss (IN-OUT) 950-2400 MHz | 5,5 dB |
| Abzweigdämpfung (IN-TAP) 5-862 MHz | 11,5 dB |
| Tap loss (IN-TAP) 950-2400 MHz | 13,5 dB |
| Entkopplung (TAP-TAP) 5-862 MHz | 21 dB |
| Isolation (TAP-TAP) 950-2400 MHz | 18 dB |
| Entkopplung (OUT-TAP) 5-862 MHz | 23 dB |
| Isolation (OUT-TAP) 950-2400 MHz | 18 dB |
| Rückflussdämpfung (IN/OUT/TAP) 5-862 MHz | 9 dB |
| Return loss (IN/OUT/TAP) 950-2400 MHz | 10 dB |
| Wir behalten uns das Recht auf Datenänderungen bei Fehlern vor. / We reserve the right to amend data in case of errors. | |
