Excellent amplitude frequency response
5-1218 MHz splitter in high-quality POLYTRON quality.
Key Features:
- Shielding factor Class A (+10 dB), according to EN50083-2:2012
- DOCSIS 3.1 compliant
- Excellent amplitude frequency response
- High shielding factor thanks to fully soldered housing
- Low intermodulation
- Slot mounting
- Return channel compatible
- Earth terminal 8 mm²
- Approved by Vodafone Kabel Deutschland GmbH
| ⏩ | View product in our shop |
| Technische Daten / Technical data | |
| Typ / Type |

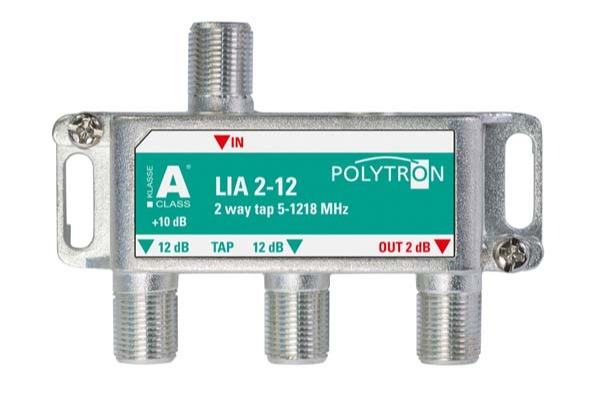

LIA 2-12
|
| Artikel-Nr. / Article no. | 3262609 |
| Abzweiger / Taps | 2-fach / 2-way |
| Frequenzbereich / Frequency range | 5...1218 MHz |
| Abzweigdämpfung / Tap loss (IN-TAP typ.) | 12,5...12 dB |
| Durchgangsdämpfung / Through loss (IN-OUT typ.) | 1,2...2,2 dB |
| Entkopplung / Isolation (OUT-TAP typ.) | 32...23 dB |
| Entkopplung / Isolation (TAP-TAP typ.) | 46...27 dB |
| Rückflussdämpfung / Return loss (IN/OUT/TAP typ.) | 20...14 dB |
| Wir behalten uns das Recht auf Datenänderungen bei Fehlern vor. / We reserve the right to amend data in case of errors. | |
