Shielding factor Class A (+10 dB), according to EN50083-2:2012
5-1218 MHz splitter in high-quality POLYTRON quality. With F connectors.
Key Features:
- Shielding factor Class A (+10 dB), according to EN50083-2:2012
- DOCSIS 3.1 compliant
- Excellent amplitude frequency response
- High shielding factor due to fully soldered housing
- Low intermodulation
- Slot mounting
- Return channel compatible
- Earth clamp 8 mm²
| ⏩ | View product in our shop |
| Technische Daten / Technical data | |
| Typ / Type |

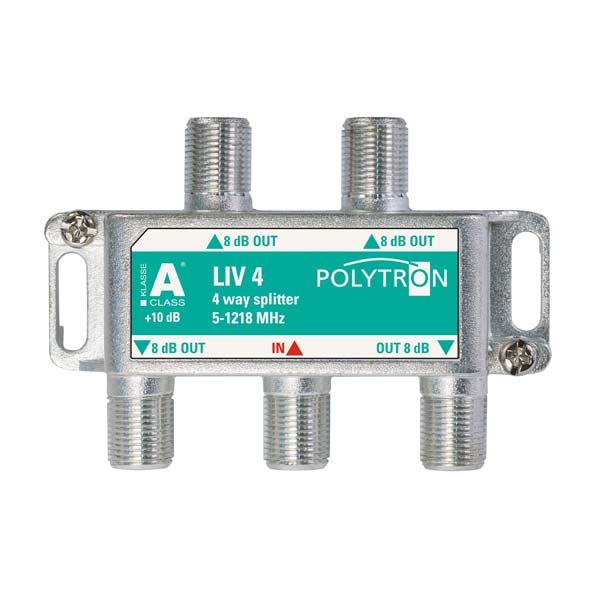

LIV 4
|
| Artikel-Nr. / Article no. | 3021503 |
| Verteiler / Splitter | 4-fach / 4-way |
| Frequenzbereich / Frequency range | 5...1218 MHz |
| Durchgangsdämpfung / Through loss (IN-OUT typ.) | 6,6...8 dB |
| Entkopplung / Isolation (OUT-OUT typ.) | 30...22 dB |
| Rückflussdämpfung / Return loss (IN-OUT typ.) | 20...14 dB |
| Wir behalten uns das Recht auf Datenänderungen bei Fehlern vor. / We reserve the right to amend data in case of errors. | |
