High shielding factor thanks to fully soldered housing
5-1000 MHz 1-way splitter 16 dB in reliable POLYTRON quality F connectors.
Key Features:
- Excellent amplitude frequency response
- High shielding factor thanks to fully soldered housing
- Brummen-decoupled by isolating capacitors
- Plastic bracket for wall mounting included in delivery
- Slotted hole mounting
- Return path compatible
- Ground clamp 4 mm2
| ⏩ | View product in our shop |
| Technische Daten / Technical data | |

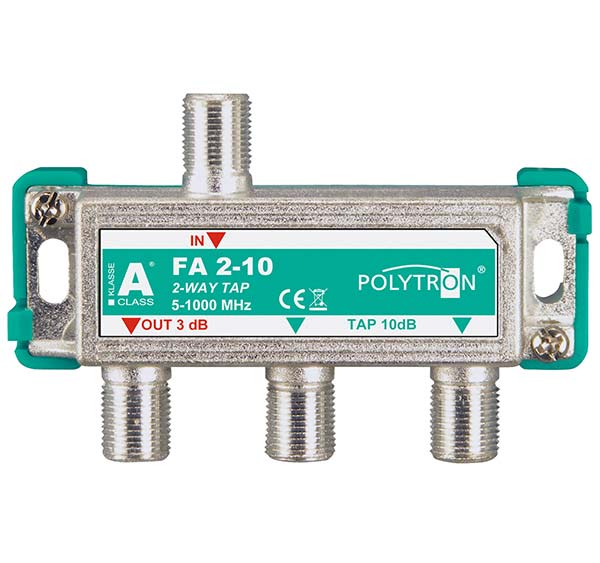

| Typ / Type |
FA 2-10
|
| Artikel-Nr. / Article no. | 3222410 |
| Abzweiger / Tap | 5-1000 MHz ; 2-fach / 2-way |
| Abzweigdämpfung / Tap loss (IN-TAP) | 10 dB |
| Durchgangsdämpfung / Through loss (IN-OUT) | 3 dB |
| Entkopplung / Isolation (OUT-TAP) | 26 dB |
| Entkopplung / Isolation (TAP-TAP) | 26 dB |
| Rückflussdämpfung / Return loss (IN/OUT/TAP) | 18 dB |
| Wir behalten uns das Recht auf Datenänderungen bei Fehlern vor. / We reserve the right to amend data in case of errors. | |
