- excellent amplitude frequency response
- high screening factor >100 dB by fully soldered housing
- EMI decoupled by capacitive separators
- plastic bracket for wall mounting included
- long hole fastener
- ground clamp 4 mm2
| Technische Daten / Technical data | |||
| Typ / Type |

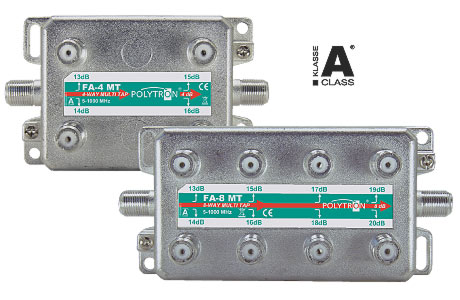

FA-4 MT
|
FA-6 MT
|
FA-8 MT
|
| Artikel-Nr. / Article no. |
3224600
|
3224700
|
3224800
|
| Vielfach-Abzweiger / Multi-tap |
4
|
6
|
8
|
| Durchgangsdämpfung / Through loss (IN-OUT) 5-1000 MHz |
5,5 dB
|
6 dB
|
8 dB
|
| Abzweigdämpfung / Tap loss (IN-TAP) 5-1000 MHz |
13/14/15/16 dB
|
13/14/15/16/17/18 dB
|
13/14/15/16/17/18/19
20 dB |
| Entkopplung / Isolation (TAP-TAP) 5-1000 MHz |
30 dB
|
30 dB
|
32 dB
|
| Entkopplung / Isolation (OUT-TAP) 5-1000 MHz |
20 dB
|
20 dB
|
22 dB
|
