High shielding factor thanks to fully soldered housing

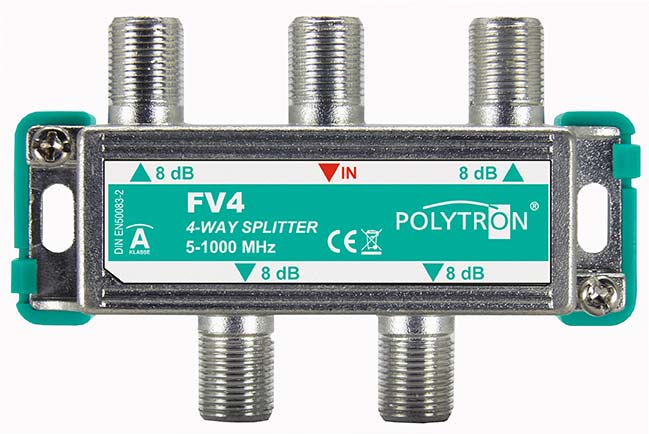

5-1000 MHz splitter in the usual POLYTRON quality and with excellent amplitude frequency response.
Key Features:
- Excellent amplitude frequency response
- High shielding factor thanks to fully soldered housing
- Brummen-decoupled by isolating capacitors
- Plastic bracket for wall mounting included in delivery
- Slotted hole mounting
- Return path compatible
- Ground clamp 4 mm2
| ⏩ | View product in our shop |
| Technische Daten / Technical data | |
| Typ / Type |
FV 4
|
| Artikel-Nr. / Article no. | 3021200 |
| Verteiler / Splitter | 4 |
| Durchgangsdämpfung / Through loss (IN-OUT) 5-1000 MHz | 7 dB |
| Entkopplung / Isolation loss (OUT-OUT) 5-1000 MHz | 26 dB |
| Rückflussdämpfung / Return loss (IN/OUT) 5-1000 MHz | 18 dB |
| Wir behalten uns das Recht auf Datenänderungen bei Fehlern vor. / We reserve the right to amend data in case of errors. | |
