- excellent amplitude frequency response
- high screening factor >100 dB by fully soldered housing
- EMI decoupled by capacitive separators
- long hole fastener
- suitable for return path
- ground clamp 4 mm2
| Technische Daten / Technical data | |||

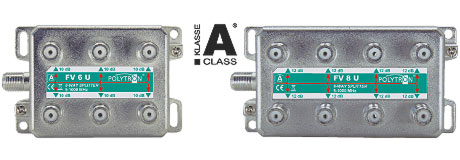

| Typ / Type |
FV 4 U
|
FV 6 U
|
FV 8 U
|
| Artikel-Nr. / Article no. |
3021210
|
3021310
|
3021410
|
| Vielfach-Verteiler / Multi-splitter Wege / way |
4
|
6
|
8
|
| Durchgangsdämpfung / Through loss (IN-OUT) 5-1000 MHz |
7,8 dB
|
10,8 dB
|
11,8 dB
|
| Entkopplung / Isolation loss (OUT-OUT) 5-1000 MHz |
26 dB
|
25 dB
|
25 dB
|
| Rückflussdämpfung / Return loss (IN) 5-1000 MHz |
18 dB
|
18 dB
|
18 dB
|
| Rückflussdämpfung / Return loss (OUT) 5-1000 MHz |
20 dB
|
20 dB
|
20 dB
|
