POLYTRON ONT AD511T-EU - 10Gbit/s XGS-PON

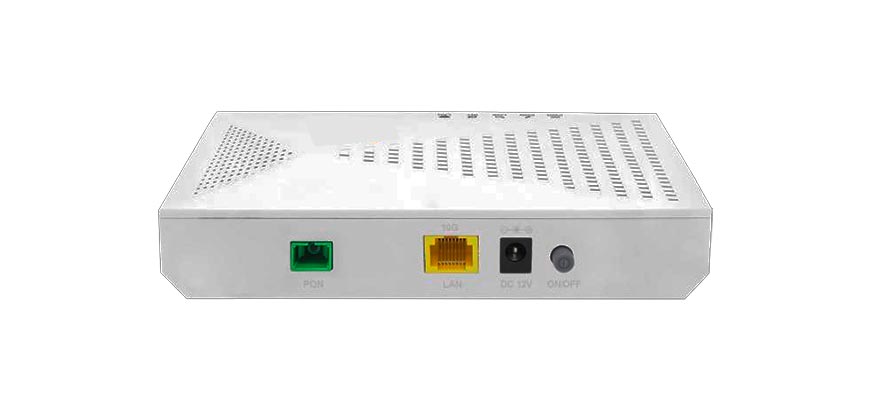

AD511T-EU – 10 Gbit/s XGS-PON ONT

The AD511T-EU is a powerful 10G XGS-PON ONT (Optical Network Terminal) designed for modern fiber optic networks.

Thanks to support for the ITU-T G.987 standard, the device offers ultra-fast data rates of up to 10 Gbit/s and is suitable for both private households and businesses with high bandwidth requirements. Easy installation and seamless compatibility with common OLT devices make the AD511-EU the ideal solution for future-proof network infrastructures.

ONT System von Polytron

Key features:

ITU-T G.9807.1 (XGS-PON) & IEEE 802.3av (10G EPON) compliant
Symmetrical 10 Gbit/s upstream and downstream bandwidth
XGS-PON port (SC/APC) & 10GE RJ45 Ethernet port with up to 20 km range
Intelligent network management: auto-discovery, remote upgrade, VLAN, bandwidth control, and DBA
High security & stability thanks to AES encryption, firewall, MAC/URL filter, and broadcast storm protection
Convenient administration via SNMP, web, Telnet, and power-off alarm for quick fault diagnosis

⏩	View product in our shop
⏩	Datasheet

Typ / Type	AD511T-EU
Artikel-Nr. / Article no.	9418241
Parameter / Parameters
Schnittstellen / Interfaces	1x 10GE LAN Port, 1x XGSPON Port
LEDs	PWR / XGSPON / LOS / LAN / INT
Optik-Eingang / Optical input
Konnektor / Connector	SC/APC
Wellenlänge / Wavelength	Uplink: 1270 nm / Downlink 1577 nm
Tx Power (XGSPON)	4…9 dBm
Rx Sensitivity (XGSPON)	'-28 dBm
Saturation Power (XGSPON)	'-9 dBm
Distanz / Distance	0…20 km
Übertragungsrate / Transmission rate	XGS-PON Upstream: 10 Gbps; Downstream: 10 Gbps
LAN-Schnittstellen / LAN types	'RJ-45 (10 GE)
Features
Allgemeine Übersicht / General overview	● Unterstützung für ONU Auto-Discovery, Link-Erkennung und Remote-Software-Upgrade/ Support ONU auto-discovery/Link detection/remote upgrade of software ● Unterstützung für SN- und LOID+Passwort-basierte Registrierungsverfahren/ Support SN and LOID+Password multiple registration methods ● Unterstützung für Port-VLAN-Konfiguration/ Support port VLAN configuration ● Unterstützung für Port-basierte Bandbreitenbegrenzung und -kontrolle/ Support port-based rate limitation and bandwidth control ● Unterstützung für Port-Flow-Control/ Support port flow-control ● Unterstützung für MAC-Adress-Learning/ Support MAC address learning ● Unterstützung für MAC-Adress-Limitierung pro Port/ Support MAC address learning account limit ● Unterstützung für Broadcast-Storm-Schutz/ Support broadcasting storm resistance function ● Unterstützung für Dynamic Bandwidth Allocation (DBA)/ Support Dynamic Bandwidth Allocation (DBA) ● Unterstützung für AES-Verschlüsselung und -Entschlüsselung/ Support AES encryption and decryption ● EMS-Netzwerkmanagement basierend auf SNMP für einfache Wartung/ EMS network management based on SNMP convenient for maintenance ● Unterstützung für Power-Off-Alarmfunktion zur schnellen Link-Fehlererkennung/ Support power-off alarm function, easy for link problem detection ● Unterstützung für Firewall/ Support Firewall ● Unterstützung für MAC-Adress- und URL-Filter/ Support MAC address/URL filter ● Unterstützung für Remote-Web- und Telnet-Zugriffskontrolle/ Support Remote WEB/Telnet access control
Allgemeine Spezifikationen / General specifications
Management	WEB GUI/Telnet/SNMP
Betriebstemperatur / Operating Temperature	'0...40 °C
Rel. Luftfeuchtigkeit / Operating relative humidity	10…90 % (nicht kondensierend / non-condensing)
Stromversorgung / Power supply	12 V / 1 A
Leistungsaufnahme / Power consumption	<8,1 W
Maße (BxLxH) / Dimensions (WxDxH)	160 x 112 x 32 mm
