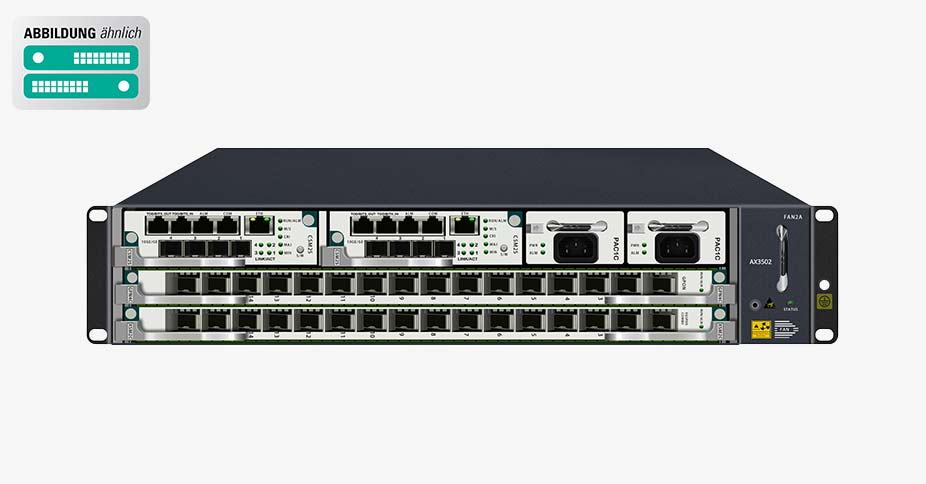

AX3502 Series – Powerful PON chassis platform for modern networks
The AX3502 series devices offer a future-proof PON chassis platform with support for GPON and XG(S)PON. The compact 2U chassis is designed for maximum flexibility and high port density.
It offers space for up to 2×16 service interface modules, 2 control & switching modules, 1 fan module, and 2 power supplies for redundant power supply. This enables the platform to support up to 32 GPON, 32 XG(S)PON, or mixed GPON/XG(S)PON combo connections—all in just two service slots.
- PON interface: 10 Gbps / 2.5 Gbps downstream, 10 Gbps / 2.5 Gbps / 1.25 Gbps upstream
- Redundancy for power supply and switching modules
- PON protection mechanisms for reliable operation
- Hot-swappable, modular design – uninterrupted replacement of components
- Advanced Layer 2 / Layer 3 functions
- Comprehensive QoS functionalities for optimal service prioritization
- Central network management via a unified NMS platform
- Remote configuration and management for flexible deployment options
| View product in our shop |
| Operating manual |
| Typ / Type |
AX3502
|
|
| System-Kapazität / System capacity | ||
| Verteilverhältnis / Split ratio max. |
1:64 (GPON), 1:128 (XG(S)PON)
|
|
| Kapazität / Capacity |
300 Gbps
|
|
| Flash-Speicher / Flash size | 64 MB + 8 GB (CSM), 64 MB (PON) | |
| Speicher / Memory Size | 4 GB (CSM), 4 GB (PON) | |
| MAC-Tabellen / MAC table capacity |
355 K
|
|
| Interfaces | ||
| PON Ports | 32 max. (je nach Bestückung / depending on the equipment) | |
| Uplink | 4x 10GE + 4x 10 GE am CSM Modul / on CSM module | |
| PON | 32x XG(S)PON, 32x GPON, 32× XG(S)PON & GPON Combo PON (je nach Bestückung / depending on the equipment) |
|
| Bandbreite / Bandwidth PON | GPON: 1.25 Gbps (up), 2.5 Gbps (down) XGPON: 2.5 Gbps (up), 10 Gbps (down) XGSPON: 10 Gbps (up), 10 Gbps(down) |
|
| PON Tx Sendeleistung / Power | 3 dBm...7 dBm (C+), 4 dBm...8 dBm (N2a) | |
| PON Rx Eingangspegel / Sensitivity | -30 dBm (C+), -29,5 dBm (N2a) | |
| PON Rx max. Eingangspegel / Overload | -12 dBm (C+), -9 dBm (N2a) | |
| Wellenlänge / Wavelength | PON: 1310 nm (up), 1490 nm (down) XG(S)PON: 1270 nm (up), 1577 nm(down) |
|
| Struktur / Instructure | Hot-Swapp Module / modules | |
| PON Fiber | Singlemode, BIDI | |
| PON-Schnittstelle / Interface | SC/UPC | |
| Standards | ITU-T G.984/G.987/G.988/G.9807, IEEE 802.1D, Spanning Tree, IEEE 802.1Q, VLAN, IEEE 802.1w, RSTP, IEEE 802.3ad, LACP, Ethernet – II |
|
| Eigenschaften / Features | ||
| QoS | IEEE 802.1p, 8 CoS queue, SP/WRR/SP+WRR, IPv4 TOS/IP Predence, Classification/Shaping/Policy/Rate limit/Schedule, DBA ONU-based bandwidth control in downstream |
|
| Multicast | IGMPv1/v2 snooping, MLDv1 snooping, IGMP snooping with Proxy, Fast Leave | |
| Layer-2 | Line-speed switch/forwarding, 355K MAC address table, Port-based VLAN, Protocol-based VLAN, 802.1q VLAN, ONU-based QinQ, 1:1/N:1 VLAN translate, LACP/LAG, STP/RSTP/MSTP, Port Mirror, Flow control / Back pressure, Broadcast/DLF/Unknown Multicast storm control, |
|
| Layer-3 | Switch virtual interface (SVI), IPv4/IPv6, static route, static/dynamic ARP, ICMP/traceroute, DHCP server/DHCP relay: IPv4/IPv6 |
|
| Betriebssicherheit / Reliability | SN / SN + Password ONU authentication FEC ONU Digital Diagnostic Monitor Rogue ONU Detection |
|
| Netzwerk-Sicherheit / Network security | SSH, ACL, User isolation, Encryption in PON downstream, DHCP Option82 / PPPoE+ |
|
| Allgemeine Spezifikationen / General specifications | ||
| Management | FTP/TFTP, Ethernet OAM, SNMP v1 & v2c, Telnet (IPv4/IPv6), Console (CLI), In-band/out-band management, Auto provision for ONU configuration, PM |
|
| Betriebstemperatur / Operating Temperature | 0...40 °C | |
| Rel. Luftfeuchtigkeit / Operating relative humidity | 10…90 % (nicht kondensierend / non-condensing) | |
| Stromversorgung / Power supply | AC: 100...240 VAC (Redundanz / Redundancy) DC: -48 VDC (Redundanz / Redundancy) |
|
| Leistungsaufnahme / Power consumption | 320 W typ. | |
| Maße (BxLxH) / Dimensions (WxDxH) |
530 x 286 x 88 mm (2 HE / RU)
|
|
| Gewicht / Weight | 10 kg | |
| Nötiges Zubehör / Necessary accessories | ||
| Chassis 2 HE / RU | AX3502-CH Chassis 2 HE mit Backplane zur Bestückung mit Control-Switching-Modulen, Service-Interface-Modulen, Netzteil und Lüfter / Chassis 2 RUs with backplane for equipping with control switching modules, service interface modules, power supply and fan |
|
| Control-Switch-Modul | AX3502-CSM2S 4x 10 GE, max. 2 per chassis |
|
| Service-Interface-Modul GPON | AX3502-GPN4C 16x GPON, max. 2 per chassis |
|
| Service-Interface-Modul XGSPON | AX3502-XGS1C 16x XGSPON, max. 2 per chassis |
|
| Service-Interface-Modul XGSPON & GPON | AX3502-XSM2C 16x XGSPON & GPON Combo, max. 2 per chassis |
|
| Lüfter-Modul / Fan module | AX3502-FAN2A | |
| Netzteil-Modul AC / Power supply module AC | AX3502-PAC1C 100...240 VAC, max. 2 per chassis |
|
| Netzteil-Modul DC / Power supply module DC | AX3502-PDC1C -48 VDC, max. 2 per chassis |
|
| Netzteil-Anschlusskabel AC / Power supply cord AC | AX3502-AC | |
| Netzteil-Anschlusskabel DC / Power supply cord DC | AX3502-DC | |
| SFP-Modul / SFP module | SFP-XG-SP-N2 SC/UPC, Wavelengths GPON: 1310nm/1490nm, XGS-PON: 1270nm/1577nm, Single fiber bi-directional data links with Tx1: 9.953Gbps, Rx1: 9.953Gbps/2.488Gbps and Tx2: 2.488Gbps, Rx2: 1.244Gbps, 2x11PIN SFP+, XG(S)-PON & GPON OLT Quadplexer, N2 & C+, 2.5W, 0°C~70°C,RoHS, 20 km |
|
