Quattro and Quad LNB compatible

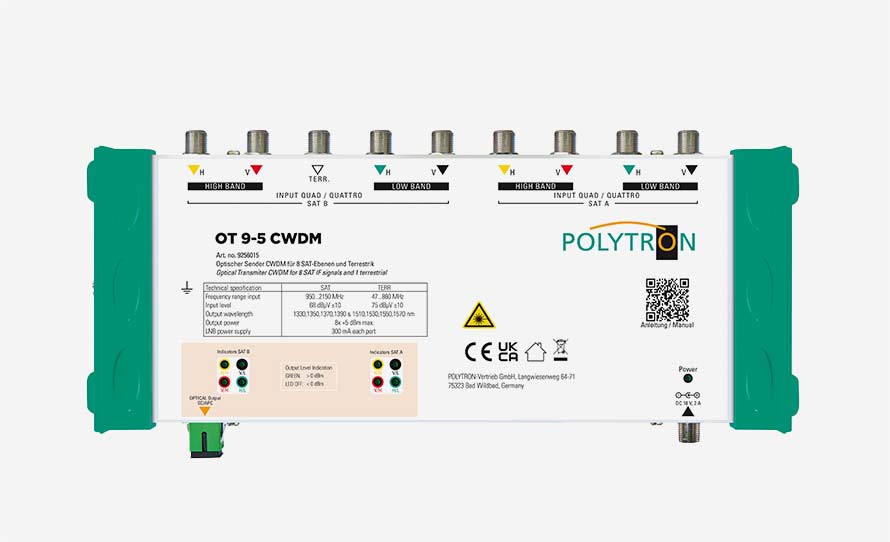

The OT 9-5 CWDM transmitter is used to receive signals in the 47–2150 MHz range and convert them into optical signals in the 1330–1390 nm and 1510–1570 nm range, which can then be fed into an optical distribution network.
Participants can receive all programs included in the signal using a standard digital receiver or TV set with an integrated digital tuner. It is irrelevant whether the individual programs are broadcast in HDTV, as pay TV, or as free-to-air signals.
- 13/18 V, 0/22 kHz switching voltage
- +5 dBm optical transmission power
- High return loss
- High linearity
- Built-in CWDM with DFB laser
- Quattro and Quad LNB compatible
- LED status indicators
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | ||
| Typ / TypeTyp / Type |
|
OT 9-5 CWDM
|
| Artikel-Nr. / Article no. |
|
9256015
|
| Eingänge / Inputs |
|
8 SAT, 1 TERR
|
| Frequenzbereich / Frequency range |
TERR.
|
47 … 860 MHz
|
|
SAT
|
950 … 2150 MHz
|
|
| Konnektor |
|
F-Buchse / F-socket
|
| Eingangspegel / Input level |
TERR.
|
75 dBμV ±10
|
|
SAT
|
68 dBμV ±10
|
|
| Rückflussdämpfung / Return loss | TERR. | |
|
SAT
|
≥10 dB
|
|
| Welligkeit |
TERR.
|
±0,75 dB
|
|
SAT
|
±1,5 dB
|
|
| LNB-Spannungsversorgung / LNB voltage supply |
|
13 / 18 VDC
|
| LNB-Stromversorgung / LNB current supply |
|
max. 300 mA (pro SAT Port)
|
| 22 kHz-Generator |
|
22 kHz ±4
|
| Optischer Ausgang / Optical output |
|
1
|
| Wellenlänge / Wavelength |
|
1330 … 1390 nm &1510 … 1570 nm (CWDM)
|
| Ausgangsleistung / Output power |
|
8x +5 dBm (3 mW)
|
| Rückflussdämpfung / Return loss |
|
≥45 dB
|
| Konnektor / Connector |
|
SC/APC
|
| Fiber-Typ |
|
Singlemode
|
| Betriebsparameter / Operating parameters | ||
| Stromversorgung / Power supply |
|
18 VDC, 2000 mA
|
| Leistungsaufnahme / Power consumption |
|
<24 W
|
| Netzteilanschluss / Power supply connection BIJ |
|
F-Buchse / F-socket
|
| Betriebstemperatur / Operating temperature |
|
-25…+55 °C
|
| Abmessungen (BxHxT) / Dimensions (WxHxD) |
|
234 x 135 x 47 mm
|
