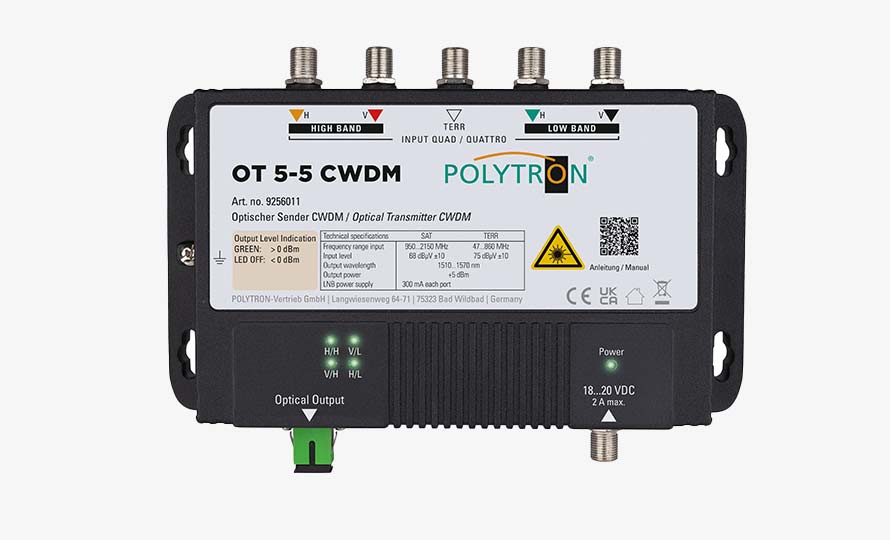

The OT 5-5 CWDM optical transmitter is used to receive 4 SAT input signals and terrestrial signals and convert them into an optical signal. The input signals are assigned to separate wavelengths in the range 1510 ... 1570 nm.
Quattro or Quad LNBs can be connected.
- 13/18 V, 0/22 kHz Switching voltage
- +5 dBm opt. transmit power
- High return loss
- high linearity
- built-in CWDM with DFB laser
- Quattro and quad LNB compatible
- LED status indicators
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | |
| Typ / TypeTyp / Type |
OT 5-5 CWDM
|
| Artikel-Nr. / Article no. |
9256011
|
| Eingänge / Inputs |
4x SAT, 1x Terr.
|
| Frequenzbereich / Frequency range |
SAT: 950 .. 2150 MHz / Terr.: 47 ... 862 MHz
|
| Eingangspegel / Input level |
SAT: 68 dBµV / Terr.: 75 dBµV
|
| Rückflussdämpfung / Return loss |
SAT: ≥10 dB / Terr.: ≥12 dB
|
| LNB-Spannungsversorgung / LNB voltage supply |
13 / 18 V
|
| LNB-Stromversorgung / LNB current supply |
max. 300 mA (pro SAT-Port)
|
| 22 kHz-Generator |
22 kHz ±4
|
| Optischer Ausgang / Optical output |
1
|
| Wellenlänge / Wavelength |
1510 ... 1570 nm
|
| Ausgangsleistung / Output power |
4x +5 dBm (3 mW)
|
| Rückflussdämpfung / Return loss |
≥45 dB
|
| Konnektor / Connector |
SC/APC (Singlemode-Fibre)
|
| Betriebsparameter / Operating parameters | |
| Stromversorgung / Power supply |
18 VDC, 2000 mA (Anschluss: F-Buchse / Connector: F female)
|
| Leistungsaufnahme / Power consumption |
<8 W
|
| Abmessungen (BxHxT) / Dimensions (WxHxD) |
197 x 142 x 47 mm
|
