Compact design and low power consumption

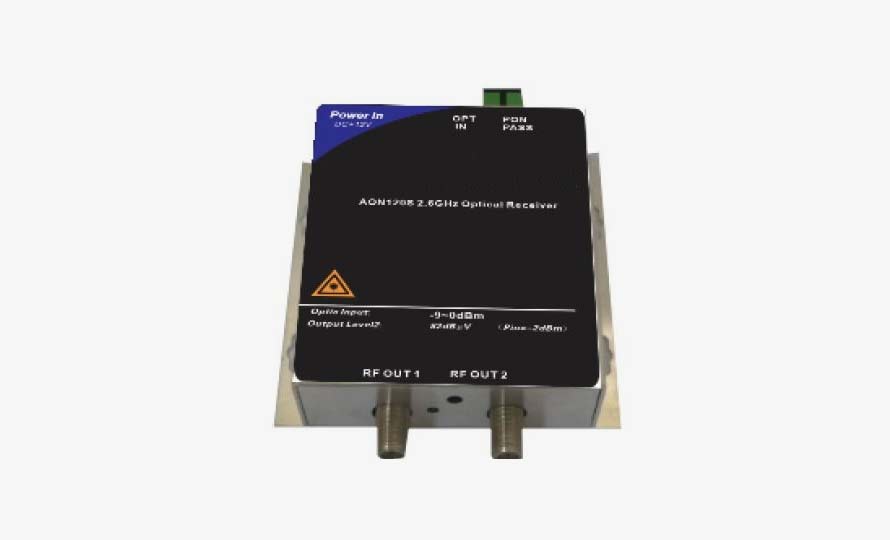

The mini receiver of the AON126 series receives optical signals and delivers both SAT IF and CATV signals at the output.
The mini receiver is a cost-effective solution and impresses with its high performance. Thanks to its very compact housing and modular design, the receiver can be flexibly adapted to different conditions and thus optimally meets the requirements of FTTH applications.
- Bandwidth CATV 45 to 862 MHz
- Bandwidth SAT IF 950 to 2600 MHz
- Compact design and low power consumption
- Wide input level range -13...0 dBm
- Input wavelength range 1290 to 1600 nm
- 2 equivalent outputs
- Power supply via plug-in power supply (included)
| ⏩ | View product in our shop |
| Typ / Type |
AON126-S-SC-84
|
| Artikel-Nr. / Article no. |
9418057
|
| Optische-Spezifikationen / Optical specifications | |
| Wellenlänge / Wavelength CATV |
1290...1600 nm
|
| Eingangsleistung / Input power |
-13...0 dBm
|
| Rückflussdämpfung / Return loss |
≥45 dB
|
| Konnektor / Connector |
SC/APC
|
| CATV-Spezifikationen / CATV specifications | |
| Bandbreite / Bandwidth |
47...862 MHz
|
| Welligkeit / Flatness |
±1,5 dB
|
| Ausgangspegel / Output level |
84 dBµV @ 0 dBm
|
| Konnektor / Connector |
F-Buchse / F female 75 Ohm (CATV + SAT)
|
| Performance* | |
| CNR |
≥51 dB
|
| CTB |
≥61 dB
|
| CSO |
≥60 dB
|
| SAT-ZF-Spezifikationen / SAT IF specifications | |
| Bandbreite / Bandwidth |
950...2600 MHz
|
| Welligkeit / Flatness |
±2,5 dB
|
| Ausgangspegel / Output level |
84 dBµV @ 0 dBm
|
| Konnektor / Connector |
F-Buchse / F female 75 Ohm (CATV + SAT)
|
| IMD |
-40 dBc
|
| Allgemeine Spezifikationen / General specifications | |
| Stromversorgung / Power supply |
+12 VDC
|
| Leistungsaufnahme / Power consumption |
≤4 W
|
| Betriebstemperatur / Operating temperature |
0...50 °C
|
| Relative Luftfeuchte / Relative humidity |
20...85 % (nicht kondensierend / non-condensing)
|
| Maße (BxLxH) / Dimensions (WxDxH) |
135 x 100 x 26 mm
|
* 60 channels PAL, input power 0 dBm, 5 dB noise figure, EDFA transmission 65 km, OMI 3.5%
