Calibrated wavelengths 850, 1300, 1310, 1490, 1550, 1625 nm

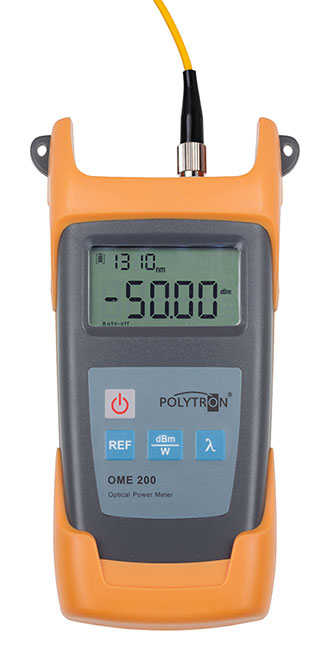

The optical power meter OME 200 is the perfect assistant when building and controlling an optical distribution line. Equipped with FC/PC resp. SC/PC as well as SC/APC (with adaptor), a measuring range from -50 to + 30 dBm, as well as a wavelength range from 800-1700 nm the power meter is very flexible.
The device has an automatic switch-off function and a LCD light to facilitate work in poorly-lit rooms. For reference measurements, zero calibration is possible. In combination with the optical test transmitter the complete network can be measured to recognize and correct possible errors at an early stage. In some cases (burial networks), it is also advisable to measure the optical cable prior to installation to avoid extra work later.
- Power supply and case included in delivery
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
|
Typ / Type
|
OME 200
|
| Artikel-Nr. / Article no. |
9245492
|
|
Wellenlängen / Wavelengths
|
800–1700 nm
|
| Sensor Typ / Detector type |
InGaAs
|
| Sensorgröße / Detector size |
Ø 1,0 mm
|
| Messbereich / Measurement range |
-50...+30 dBm
|
| Kalibrierte Wellenlängen / Calibrated wavelengths |
850, 1300, 1310, 1490, 1550, 1625 nm
|
| Auflösung / Resolution |
0,01 dB
|
| Optischer Anschluss / Optical connector |
SC/APC ; SC/PC
|
| Stromversorgung / Power supply |
3x AA 1,5 V Batterien ; Netzteil
|
| Batterielaufzeit / Battery operating time |
140 h
|
| Betriebstemperatur / Operating temperature |
-10 ... +60 °C
|
| Lagerungstemperatur / Storage temperature |
-25 ... +70 °C
|
| Maße (L x B x H) / Dimensions (L x W x H) |
190 x 100 x 50 mm
|
| Gewicht / Weight |
0,37 g
|
