Compliant with ITU-T G.984 and ITU-T G.988

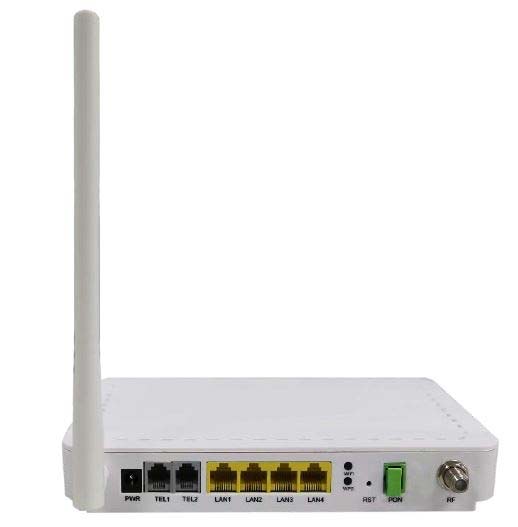

The AP224 series GPON CPEs are optical customer premises equipment for providing data, voice, and video services in optical distribution systems (GPON networks).
The devices comply with the ITU-T G.984/G.988 standard and achieve higher bandwidth and efficiency through variable data packets from GPON services in FTTH/FTTB applications. This makes them the perfect terminal solution and enables providers to offer their end customers reliable data services.
- Compliant with ITU-T G.984 and ITU-T G.988
- Max. distribution capacity 1:128
- Uplink 1.25 Gbps
- Downlink 2.5 Gbps
- Supports e.g. VLAN, STP, DHCP, IGMP snooping,
- 4xGE, 2POTS, WIFI b/g/n
- Plug-in power supply included
| View product in our shop |
| Operating manual |
| Typ / Type |
AP224BWT-SC
|
AP224BWT-SC-2
|
| Artikel-Nr. / Article no. |
9418080
|
9418081
|
| Schnittstellen / Interfaces | ||
| Uplink |
1 GPON Port, ITU-T G.984/G.988
SC/APC Single Mode |
|
| Ethernet Ports |
4 GigE Ports RJ45
|
|
| POTS Ports |
2 RJ11
|
|
| USB |
1
|
/
|
| CATV |
1 F-Buchse, Ausgang/Output >70 dBµV, (AGC -15...-5 dBm)
|
/
|
| WiFi |
802.11b/g/n, external dual antenna
|
|
| Performance | ||
| Datenrate / Data rate Downlink |
2,5 Gbps
|
|
| Datenrate / Data rate Uplink |
1,25 Gbps
|
|
| Wellenlänge / Wavelength PON |
1310 nm Uplink (0,5...+5 dBm)
1490 nm Downlink (-28 dBm input) |
|
| Betriebssicherheit / Reliability |
Rate limit, Loop detect, Dying-Gasp
|
|
| Allgemeine Spezifikationen / General specifications | ||
| Management |
CLI, Web, SNMP, Telnet, TR069 Software upgrade via TFT, Web, TR069, OLT, local/remote syslog
|
|
| Betriebstemperatur / Operating Temperature |
0...45 °C
|
|
| Rel. Luftfeuchtigkeit / Operating relative humidity |
10...90 % (nicht kondensierend / non-condensing)
|
|
| Stromversorgung / Power supply |
12 V / 1,5 A AC/DC Power Supply extern/external
|
|
| Maße (BxLxH) / Dimensions (WxDxH) |
230 x 140 x 34,9 mm
|
|
