Supports e.g. VLAN, STP, DHCP, IGMP snooping

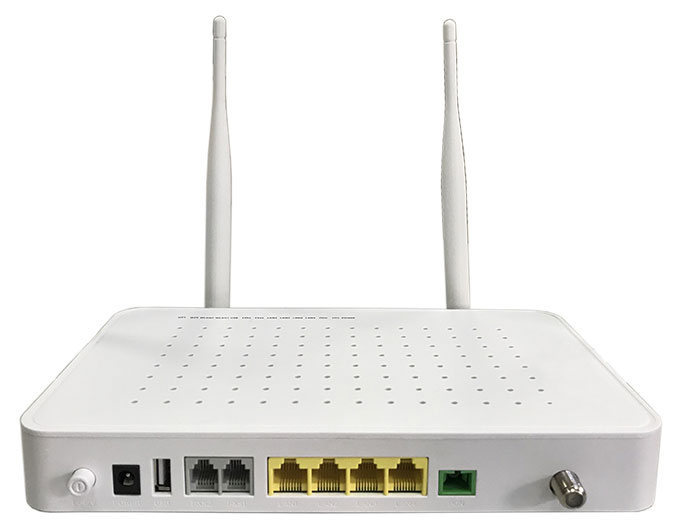

The AP224 series GPON CPEs are optical customer premises equipment for providing data, voice, and video services in optical distribution systems (GPON networks).
The devices comply with the ITU-T G.984/G.988 standard and achieve higher bandwidth and efficiency through variable data packets from GPON services in FTTH/FTTB applications. This makes them the perfect terminal solution and enables providers to offer their end customers reliable data services.
- Compliant with ITU-T G.984 and ITU-T G.988
- Max. distribution capacity 1:128
- Uplink 1.25 Gbps
- Downlink 2.5 Gbps
- Supports e.g. VLAN, STP, DHCP, IGMP snooping,
- 4xGE, 2POTS, WIFI b/g/n
- Plug-in power supply included
| View product in our shop |
| Operating manual |
| Typ / Type |
AP224BWT-SC
|
AP224BWT-SC-2
|
| Artikel-Nr. / Article no. |
9418080
|
9418081
|
| Schnittstellen / Interfaces | ||
| Uplink |
1 GPON Port, ITU-T G.984/G.988
SC/APC Single Mode |
|
| Ethernet Ports |
4 GigE Ports RJ45
|
|
| POTS Ports |
2 RJ11
|
|
| USB |
1
|
/
|
| CATV |
1 F-Buchse, Ausgang/Output >70 dBµV, (AGC -15...-5 dBm)
|
/
|
| WiFi |
802.11b/g/n, external dual antenna
|
|
| Performance | ||
| Datenrate / Data rate Downlink |
2,5 Gbps
|
|
| Datenrate / Data rate Uplink |
1,25 Gbps
|
|
| Wellenlänge / Wavelength PON |
1310 nm Uplink (0,5...+5 dBm)
1490 nm Downlink (-28 dBm input) |
|
| Betriebssicherheit / Reliability |
Rate limit, Loop detect, Dying-Gasp
|
|
| Allgemeine Spezifikationen / General specifications | ||
| Management |
CLI, Web, SNMP, Telnet, TR069 Software upgrade via TFT, Web, TR069, OLT, local/remote syslog
|
|
| Betriebstemperatur / Operating Temperature |
0...45 °C
|
|
| Rel. Luftfeuchtigkeit / Operating relative humidity |
10...90 % (nicht kondensierend / non-condensing)
|
|
| Stromversorgung / Power supply |
12 V / 1,5 A AC/DC Power Supply extern/external
|
|
| Maße (BxLxH) / Dimensions (WxDxH) |
230 x 140 x 34,9 mm
|
|
