for the distribution of SAT IF levels and terrestrial signals

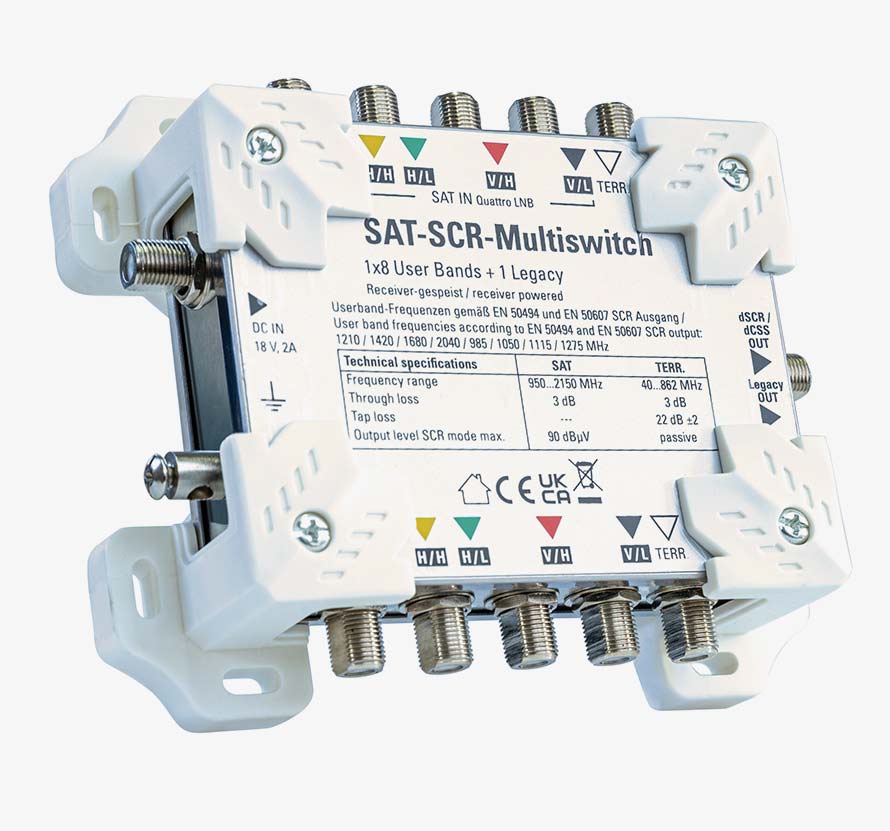

The dSCR multiswitch has 5 inputs (4x SAT, 1x Terr.), 5 cascade outputs, 1 SCR output, and 1 legacy output.
A Quattro LNB can be connected at the input. The terrestrial branch is passive. The SCR output has 8 user bands for connecting up to 8 receivers.
The legacy output works like a multiswitch output. The multiswitch can be powered by the receiver. If necessary, the included power supply unit can be used for power supply.
- Operation with Quattro LNBs
- Legacy or SCR mode
- SCR mode supports EN50607 (SCD 2), EN50494 (SCD)
- Terrestrial branch supports DOCSIS, cable, and terrestrial reception <1 GHz
- Cascade switch for setting up cascade systems
- Includes power supply
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | |
| Typ / Type |
SCA 501-8
|
| Artikel-Nr. / Article no. |
9269058
|
| Eingänge/ Inputs |
4x SAT, 1x TERR
|
| Ausgänge / Outputs |
1x SCR-Betrieb mit 8x Userbändern
1x Legacy-Betrieb |
| Standards EN 50494 + EN 50607 Frequenzen / Frequencies |
1210 MHz, 1420 MHz, 1680 MHz, 2040 MHz, 985 MHz, 1060 MHz, 1110 MHz, 1275 MHz
|
| Frequenzbereich / Frequency range |
SAT: 950 … 2150 MHz
TERR: 40 ... 862 MHz |
| SCR-Einkabel-Norm / SCR single-cable standard |
EN 50494 / EN 50607
|
| Durchgangsdämpfung / Through loss |
SAT: 3 dB TERR: 3 dB
|
| Abzweigdämpfung / Tap loss |
TERR: 22 dB ±2
|
| Rückflussdämpfung / Return loss SIV |
10 dB
|
| Eingangspegel / Input level BIJ |
SAT: 60 ... 90 dBμV
|
| Ausgangspegel im SCR-Betrieb / Output level |
90 dBμV
|
| Konnektoren / Connectors |
F-Buchse / F female
|
| Stromaufnahme / Current consumption |
300 mA
|
| Externes Netzteil / External power supply |
18 VDC / 2000 mA (F-Type)
|
| Abmessungen mm (L x B x H) / Dimensions mm (L x W x H) |
140 x 110 x 40
|
