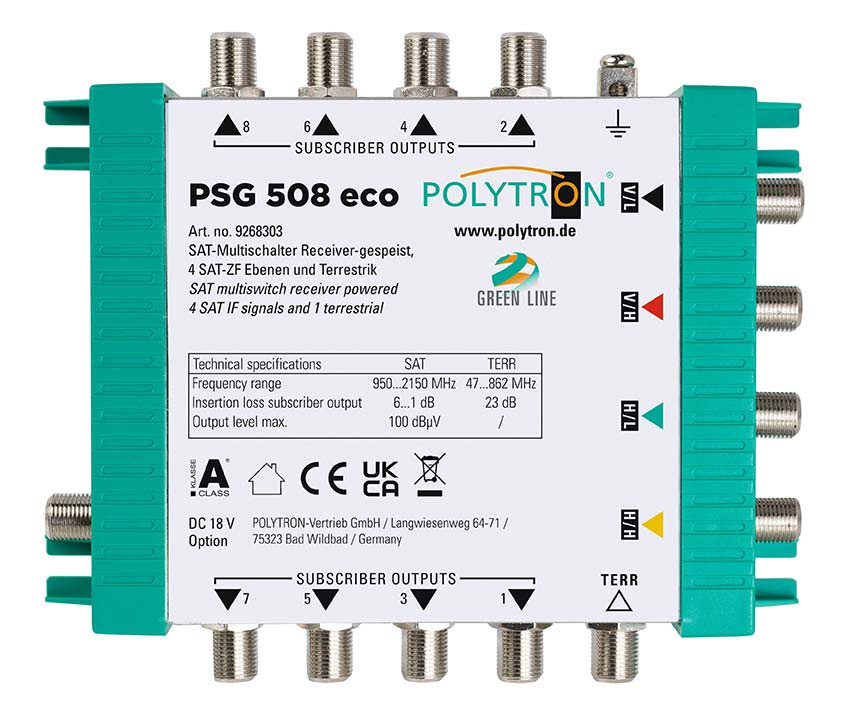

Compact design with easily accessible F-connectors
With POLYTRON's receiver-powered multiswitches, you are completely free to choose the installation location, regardless of power connections.
The devices in the PSG eco series distribute 5 or 9 input signals (4x SAT, 1x Terr. or 8x SAT, 1x Terr.) to 8 or 16 subscriber outputs. The multiswitches themselves and the connected LNB are powered by the receivers or televisions connected to the distribution network.
The PSG eco series multiswitches impress with excellent reception values and color-coded, easily accessible connections.
Receiver-powered multiswitches:
- Works without power supply
- High signal quality
- Active SAT section
- Low connection attenuation
- Low power consumption: 35 mA plus LNB
- Short-circuit proof with receiver power supply
- Passive terrestrial branch
- Optional power supply for special applications
- Compact design with easily accessible F connectors
- High shielding class A
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | ||
| Typ / Type |
PSG 508 eco
|
|
| Artikel-Nr. / Article no. |
9268303
|
|
| Frequenzbereich / Frequency range |
SAT: 950...2150 MHz / TERR: 5...862 MHz
|
|
| Eingänge / Inputs |
4x SAT, 1x TERR
|
|
| Ausgänge / Outputs |
8
|
|
| Anschlussdämpfung / Tap loss | SAT |
6...1 dB
|
| TERR |
23 dB
|
|
| Entkopplung / Isolation | TERR-SAT |
30 dB
|
| SAT/H-SAT/V |
30 dB
|
|
| Rückflussdämpfung / Return loss |
10 dB
|
|
| Ausgangspegel / Output level | SAT |
100 dBµV (IMA 35 dB @ EN 50083-3)
|
| TERR |
/
|
|
| Anschlüsse / Connectors |
F-Buchse / F female
|
|
| Schaltkriterien / Switching commands |
13 V/ 18 V; 0 kHz / 22 kHz
|
|
| Schaltspannung / Switching voltage |
15 V ±1 V
|
|
| Stromaufnahme / Current consumption |
35 mA (+ LNB)
|
|
| Externes Netzteil / External power supply |
18 VDC / 2000 mA (option, F-Type)
|
|
| Abmessungen (L x B x H) / Dimensions (L x W x H) | [mm] |
150 x 120 x 41
|
