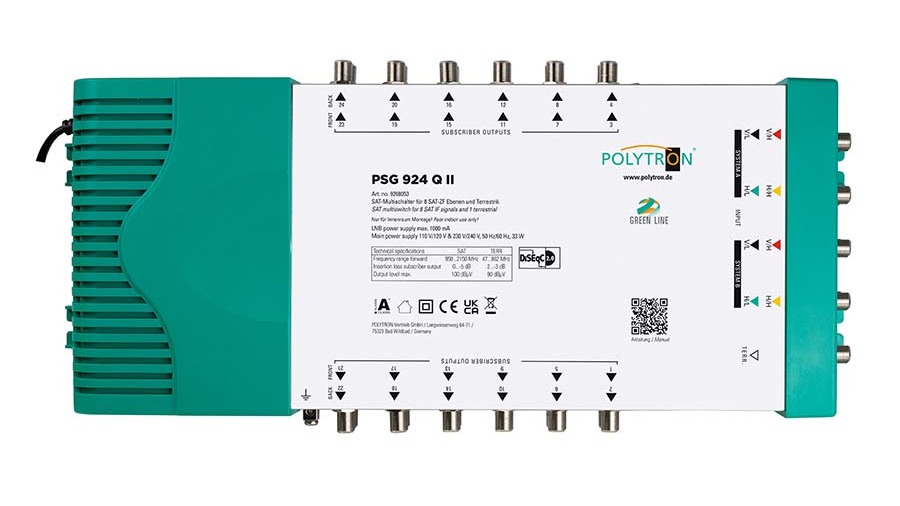

PSG 924 Q II single multiswitch for distributing 8 SAT IF levels (e.g., ASTRA) and terrestrial signals to the connected subscribers or receivers.
The ZF levels are selected using the switching criteria 13/18 V, 0/22 kHz, and DiSEqC 2.0.
- 8 SAT and 1 terrestrial input
- Quad or Quattro LNBs can be used
- High energy efficiency
- Integrated amplifier to compensate for cable attenuation
- Switching criteria 13/18 V, 0/22 kHz and DiSEqC 2.0
- Built-in 22 kHz generator
- High return loss
- High decoupling of the levels
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | ||
| Typ / Type |
PSG 924 Q II
|
|
| Artikel-Nr. / Article no. |
9268053
|
|
| Eingänge / Inputs |
8 SAT, 1 TERR
|
|
| Ausgänge / Outputs |
24
|
|
| Frequenzbereich / Frequency range |
47...862 MHz / 950...2150 MHz
|
|
| Anschlussdämpfung Tap loss |
SAT 950...2150 MHz |
0...-5 dB
|
| Anschlussdämpfung Tap loss |
TERR. 47...862 MHz |
0 dB
|
| Schaltkriterien / Switching commands |
13 V / 18 V / 0/22 kHz / DiSEqC 2.0
|
|
| Entkopplung / Isolation | Horz. / Vert. |
> 28 dB
|
| Entkopplung / Isolation | SAT / TERR |
> 30 dB
|
| Ausgangspegel max. / Output level max. * |
SAT: 100 dBµV ; TERR: 90 dBµV
|
|
| LNB-Stromversorgung / LNB supply |
max. 1000 mA
|
|
| Betriebsspannung / Operating voltage |
90...264 V~, 47...63 Hz
|
|
| Leistungsaufnahme / Power consumption |
typ. 12,6 W
|
|
| Betriebstemperatur / Operation temperature |
-20...+55 °C
|
|
| Maße (B x H x T) / Dimensions (W x H x D) | [mm] |
385x180x60
|
