8 SAT and 1 terrestrial input

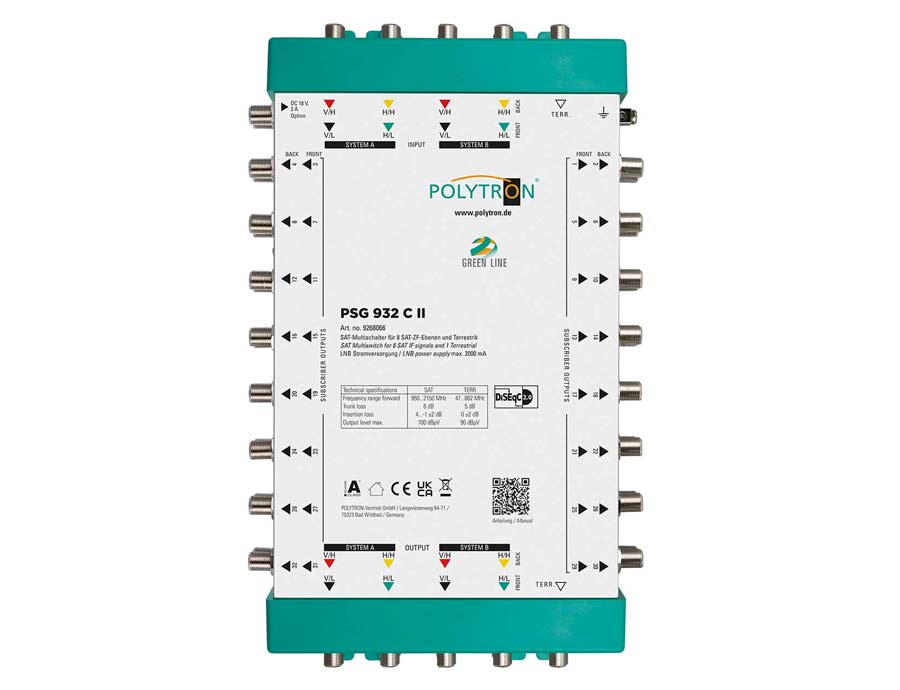

The PSG 932 C II multiswitch distributes the signals from your satellite reception system to up to 32 end devices, such as satellite receivers, televisions with satellite tuners, etc.
The ZF levels are selected using the switching criteria 14/18 V, 0/22 kHz, and DiSEqC 2.0.
- 8 SAT and 1 terrestrial input
- High energy efficiency
- Integrated amplifier to compensate for cable attenuation
- Switching criteria 14/18 V, 0/22 kHz, and DISEqC 2.0
- High return loss
- High decoupling of the levels
- A power supply unit for LNB power must be connected within the cascade
| View product in our shop |
| Operating manual |
| Technische Daten / Specifications | ||
| Typ / Type |
PSG 932 C II
|
|
| Artikel-Nr. / Article no. |
9268066
|
|
| Eingänge / Inputs |
8 SAT, 1 TERR
|
|
| Ausgänge / Outputs |
32
|
|
| Frequenzbereich / Frequency range |
47...862 MHz / 950...2150 MHz
|
|
| Durchgangsdämpfung / Through loss | TERR 40...862 MHz |
5 dB
|
| Durchgangsdämpfung / Through loss | SAT 950...2150 MHz |
6 dB
|
| Abzweigdämpfung / Tap loss |
TERR. 40...862 MHz |
0 dB
|
| Abzweigdämpfung / Tap loss |
SAT 950...2150 MHz |
4...-1 dB
|
| Schaltkriterien / Switching commands |
13 V / 18 V / 0/22 kHz / DiSEqC 2.0
|
|
| Entkopplung / Isolation | Horz. / Vert. |
28 dB
|
| Entkopplung / Isolation | SAT / TERR |
30 dB
|
| Ausgangspegel max. / Output level max. * |
SAT: 100 dBµV ; TERR: 90 dBµV
|
|
| Stromaufnahme von Receiver / Power consumption receiver |
max. 50 mA
|
|
| LNB-Stromversorgung / LNB supply |
max. 1000 mA
|
|
| Betriebstemperatur / Operation temperature |
-20...+55 °C
|
|
| Maße (B x H x T) / Dimensions (W x H x D) | [mm] |
175 x 300 x 60
|
