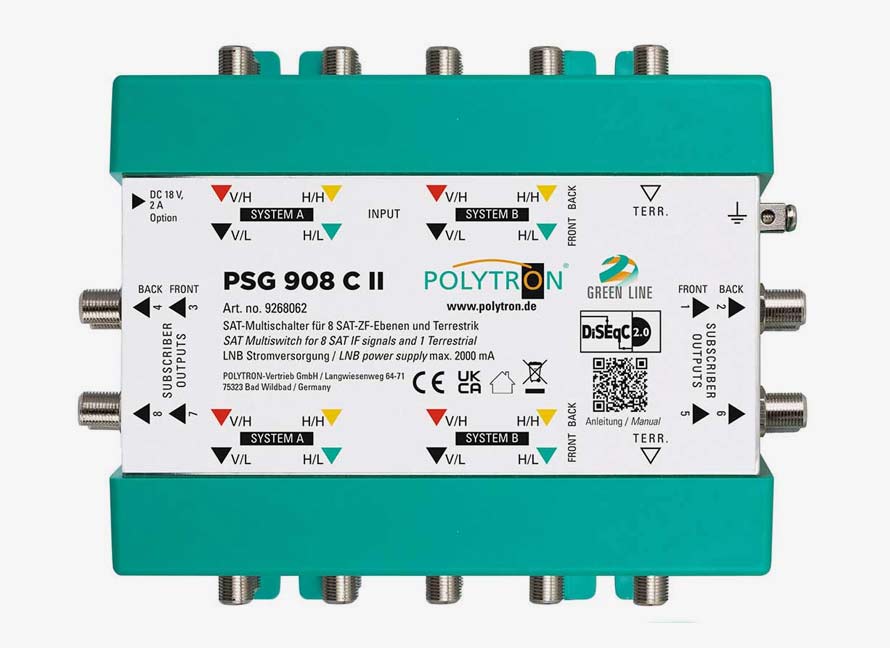

PSG Series 9 IN cascade multiswitch, 8 participants, Green Line, F connectors.
The PSG 908 C II multiswitch distributes the signals from your satellite reception system to up to 8 end devices, such as satellite receivers, televisions with satellite tuners, etc.
The IF levels are selected using the switching criteria 13/18 V, 0/22 kHz, and DiSEqC 2.0.
- 8 SAT and 1 terrestrial input
- High energy efficiency
- Integrated amplifier to compensate for cable attenuation
- Switching criteria 13/18 V, 0/22 kHz, and DiSEqC 2.0
- Built-in 22 kHz generator
- High return loss
- High decoupling of the levels
| View product in our shop |
| Operating manual |
| Technische Daten / Specifications | ||
| Typ / Type |
PSG 908 C II
|
|
| Artikel-Nr. / Article no. |
9268062
|
|
| Eingänge / Inputs |
8 SAT, 1 TERR
|
|
| Ausgänge / Outputs |
8
|
|
| Frequenzbereich / Frequency range |
47...862 MHz / 950...2150 MHz
|
|
| Durchgangsdämpfung / Through loss | TERR 40...862 MHz |
4 dB
|
| Durchgangsdämpfung / Through loss | SAT 950...2150 MHz |
3 dB
|
| Abzweigdämpfung /´Tap loss | TERR. 40...862 MHz |
0 dB
|
| Abzweigdämpfung / Tap loss | SAT 950...2150 MHz |
2...-3 dB
|
| Schaltkriterien / Switching commands |
13 V / 18 V / 0/22 kHz / DiSEqC 2.0
|
|
| Entkopplung / Isolation | Horz. / Vert. |
28 dB
|
| Entkopplung / Isolation | SAT / TERR |
30 dB
|
| Ausgangspegel max. / Output level max. * |
SAT: 100 dBµV ; TERR: 90 dBµV
|
|
| Stromaufnahme von Receiver / Power consumption receiver |
max. 50 mA
|
|
| LNB-Stromversorgung / LNB supply |
max. 1000 mA
|
|
| Betriebstemperatur / Operation temperature |
-20...+55 °C
|
|
| Maße (B x H x T) / Dimensions (W x H x D) | [mm] |
175 x 150 x 60
|
