32 SAT and 1 terrestrial input

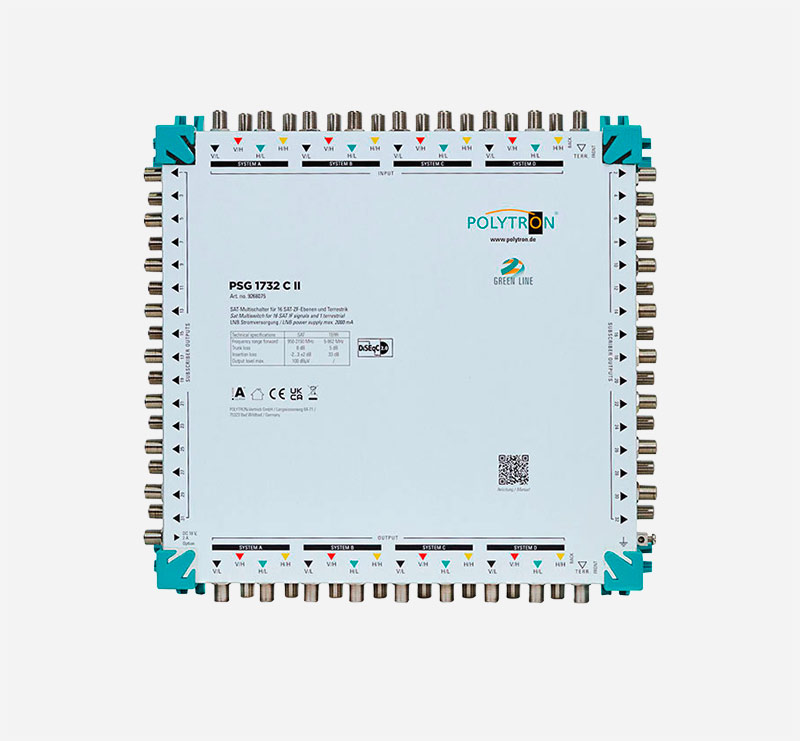

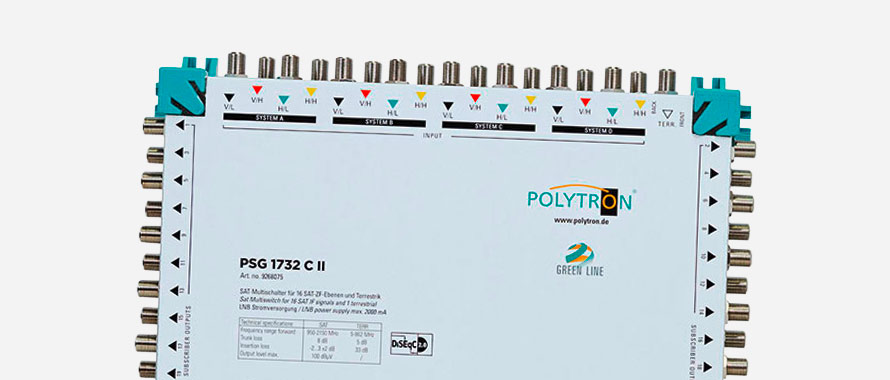

The multiswitch PSG 1732 C II distributes signals from four satellites (16 SAT IF levels) and the terrestrial signal to up to 32 devices, such as SAT receivers, televisions with SAT tuners, and other terminal equipment.
The selection of IF levels is controlled via switching signals 13/18 V, 0/22 kHz, and DiSEqC 2.0. Thanks to its dual-arranged F-socket design, the multiswitch features particularly compact dimensions.
Features:
- 16xSAT, 1xTERR
- High energy efficiency
- Integrated amplifier in the SAT range to compensate for cable attenuation
- Switching criteria: 13/18 V, 0/22 kHz, DiSEqC 2.0
- High return loss
- High level separation between signal planes
- Cascade device for expanding the SAT IF system
- Optional power supply unit NG 18/2000 F for LNB feed
- Dimensions: 290x275x65 mm
| View product in our shop |
| Operating manual |
| Technische Daten / Specifications | |
| Typ / TypeTyp / Type |
PSG 1732 C II
|
| Artikel-Nr. / Article no. |
9268075
|
| Eingänge / Inputs |
16 SAT, 1 TERR
|
| Ausgänge / Outputs |
32
|
| Frequenzbereich / Frequency range |
5...862 MHz / 950...2150 MHz
|
| Durchgangsdämpfung / Through loss TERR 40...862 MHz |
5 dB
|
| Durchgangsdämpfung / Through loss SAT 950...2150 MHz |
8 dB
|
| Abzweigdämpfung / Tap loss TERR. 40...862 MHz |
33 dB
|
| Abzweigdämpfung / Tap loss SAT 950...2150 MHz |
-3…2 dB
|
| Schaltkriterien / Switching commands |
13 V / 18 V / 0/22 kHz / DiSEqC 2.0
|
| Entkopplung / Isolation Horz. / Vert. |
30 dB
|
| Entkopplung / Isolation SAT / TERR |
30 dB
|
| Ausgangspegel max. SAT/ Output level max. SAT |
SAT: 100 dBµV ; TERR: -35 dBµV
|
| Stromaufnahme je Receiver Power consumption per receiver |
50 mA
|
| LNB-Stromversorgung / LNB supply |
max. 2000 mA
|
| Betriebstemperatur / Operation temperature |
-20...+50 °C
|
| Maße (B x H x T) / Dimensions (W x H x D) [mm] |
290x275x65
|
