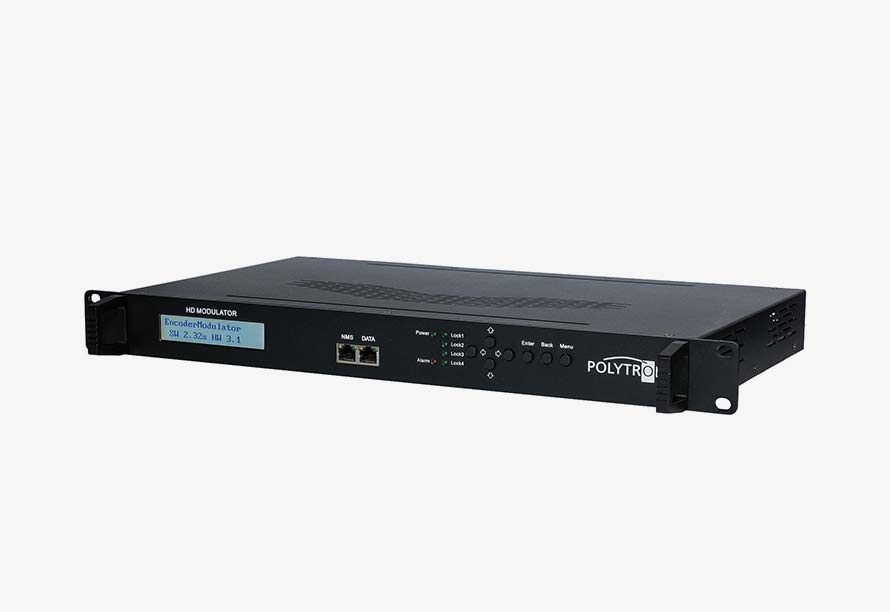

SDI modulator 4x SDI / ASI to DVB-T / ASI + IP - HDS 4 T01
The HDS 4 T01 modulator converts four SDI signals and ASI into two DVB-T (COFDM) channels. The signals are also available as IP streams and can be fed into IPTV networks.
The ASI signal is available at two outputs for further processing. The video format used is MPEG-4 or, optionally, MPEG-2. The devices are flexible in use and can process SDI signals and ASI transport streams from receivers, computers, cameras, DVD players, etc. Item no.: 5741645
- Output video format MPEG-2 / MPEG-4
- HF output: DVB-C
- (30-960 MHz)
- Parallel IPTV stream
- Excellent signal quality (MER ≥ 42 dB)
- High-quality components
- Designed for continuous operation
- Easy programming via display or PC
- Quick installation
- For 19" rack mounting
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | ||
| Typ / TypeTyp / Type |
HDS 4 T01
|
|
| Artikel-Nr. / Article no. |
5741645
|
|
| Videoformat / Video encoding |
MPEG2, MPEG4 AVC/H.264
|
|
| Eingang / Input |
4x SDI
|
|
| Auflösung / Resolution |
1920x1080_60P, 1920x1080_50P(1),
1920x1080_60i, 1920x1080_50i, 1280x720_60p, 1280x720_50P, 720x480_60i, 720x576_50i |
|
| Audioformat / Audio encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC 48 kHz
64 kbps, 96 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps |
|
| Sampling Rate / Sample rate |
48 KHz
|
|
| Bit rate |
64, 96, 128, 192, 256, 320 kBps
|
|
| Ausgang / Output |
1-4x DVB-T
|
|
| Bandbreite / Band width |
6, 7, 8 MHz
|
|
| Modulation (gem. DVB-Standard) |
QPSK, 16 QAM, 64 QAM
|
|
| FFT Mode Guard Interval FEC |
2K, 8K
1/4, 1/8, 1/16, 1/32 1/2, 2/3, 3/4, 5/6, 7/8 ≥42 dB |
|
| MER |
>_ 42 dB
|
|
| Ausgangsfrequenz / Output frequency |
30–960 MHz, 1 kHz Step
|
|
| Ausgangspegel / Output level |
-30...-10 dBm (81–97 dBµV); 0,1 dB step
|
|
| IP-Anschlüsse / IP connectors |
RJ 45 Ethernet LAN
|
|
| IP-Datenstrom / IP type of stream |
IPv4 Multicast (SPTS)
|
|
| Stromversorgung / Power supply |
100...240 VAC
|
|
| Betriebstemperatur / Operation temperature |
0–45 °C
|
|
| Leistungsaufnahme / Power consumption |
30 W
|
|
| Maße (B x H x T) / Dimensions (W x H x D) |
482 x 400 x 44 mm
|
|
| Gewicht / Weight |
4,5 kg
|
|
