SDI modulator 2x SDI/ASI to DVB-T and IP/ASI

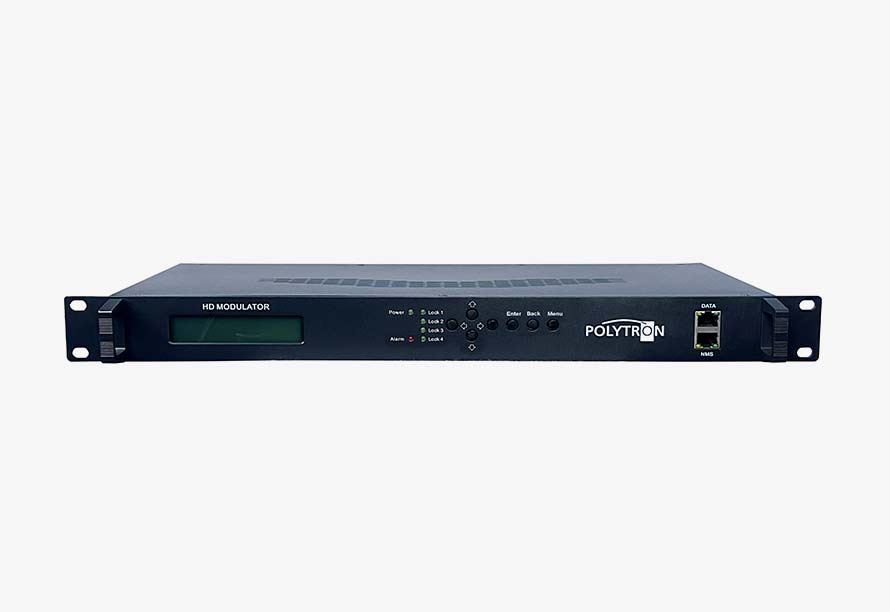

The HDS 2 T/IP is an MPEG encoder with an integrated DVB modulator. Up to two SDI signals can be encoded and, together with an additional ASI transport stream, used to compile up to four program bouquets in DVB-T.
The integrated modulator generates DVB-compliant signals that contain all necessary program and service tables (PAT, PMT, and SDT). A NIT is also generated. Furthermore, the output signals are available in parallel at an IP interface and at two ASI transport stream outputs for further processing.
The devices support the encoding of MPEG2 HD/SD and MPEG4/AVC H.264 HD/SD signals, which can be supplied as SD signals and ASI transport streams, e.g., from media players, decoders, or cameras. Depending on the application, the devices are preconfigured on the hardware side. The operating parameters can be adapted to the required application via the integrated user interface (control buttons or web browser). . Item no.: 5741698
- Output video format MPEG-2 / MPEG-4
- HF output: DVB-T (50-960 MHz)
- Parallel IPTV stream
- Excellent signal quality (MER ≥ 42 dB)
- High-quality components
- Designed for continuous operation
- Easy programming via display or web browser
- Quick installation
- For 19" rack mounting
| ⏩ | AView product in our shop |
| ⏩ | Operating manual |
| Typ / Type | HDS 2 T/IP | ||
| Artikel-Nr. / Article no. | 5741698 | ||
| Encoder Video | MPEG2, MPEG4 AVC/H.264 | ||
|
Videoformat / Video Format
Low Delay |
|||
| 2x SDI | |||
| 1920*1080_60p, 1920*1080_50p, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1440*1080_60i, 1440*1080_50i, 1280*720_60p, 1280*720_50p 720*480_60i, 720*576_50i |
|||
| Normal, Mode 1, Mode 2, Manual | |||
| 16:9, 4:3 | |||
| 4:2:0 | |||
| Encoder Audio | MPEG1 Layer II;MPEG 2-AAC; MPEG 4-AAC, Dolby Digital AC3 2.0 48 kHz 64 kbps, 96 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps |
||
|
Audioformat / Audio Format Samplingrate / Sampling Rate |
|||
| Modulator | 4 | ||
| Ausgangskanäle / Output Channels Standard Konstellation / Constellation Coderate / Code Rate Guard-Intervall / Guard Interval FFT-Mode / FFT Mode Bandbreite / Bandwidth Ausgangsfrequenz / Output Frequency Ausgangspegel / Output Level |
|||
| DVB-T COFDM QPSK, 16 QAM, 64 QAM 1/2, 2/3, 3/4, 5/6, 7/8 1/32, 1/16, 1/8, 1/4 2K, 4K, 8 K 6 MHz, 7 MHz, 8 MHz 50…960 MHz (1 kHz-Schritte / steps) -20…-3 dBm (89…106 dBµV) pro Träger / per carrier (0,1 dB-Schritte / steps) |
|||
| System | 1x HF (F) / 1x RF (F), 2x ASI (BNC), IP (RJ45) 80 Mbps Web-Interface per Ethernet IP RJ45, 100 Mbps RJ45, 1000 Mbps (4 MPTS, 2 SPTS) ETSI TS 102034 IPv4 Multicast (SMPT) |
||
|
Ausgänge / Outputs Bitrate ASI |
|||
| Betriebsparameter / | 100…240 VAC (50/60 Hz) 0…45 °C 482 x 245 x 44 mm 3,7 kg |
||
| Stromversorgung / Power Supply Betriebstemperatur / Operating Temp. Abmessungen / Dimensions Gewicht / Weight |
|||
