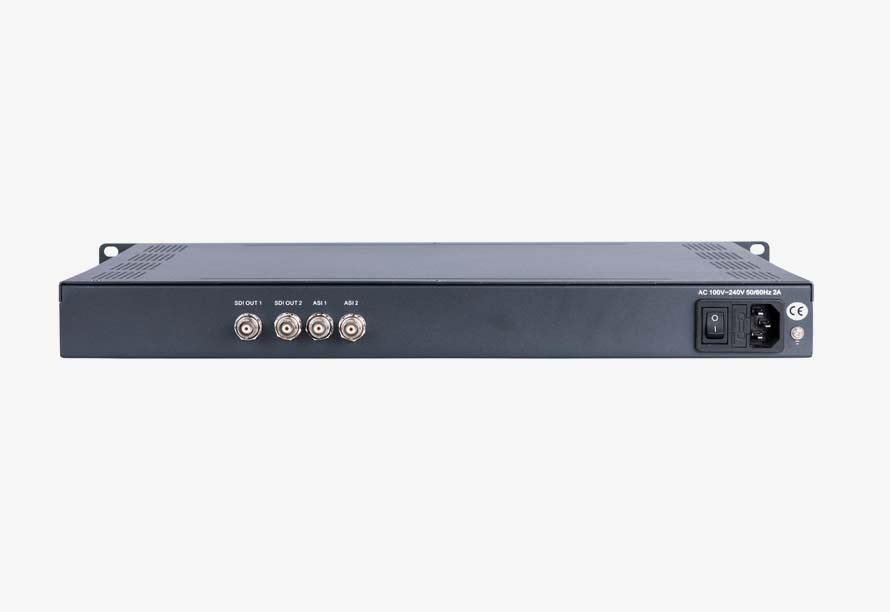

The HDI 2 SDI converts IPTV transport streams and ASI signals into SDI signals.
The HDI 2 SDI converts IPTV transport streams and ASI signals into SDI signals. After the decoding process, two video channels are output as HD / SD-SDI signals with two stereo audio signals at each port. In addition, the decoder also has an IP output (MPTS) and is equipped with two bidirectional ASI connectors for input and output.
- 2x IP input and 1x IP output, RJ45 interface
- 2x bi-directional ASI ports with input and output, optional
- 2x HD/SD-SDI decoding out with dual stereo audio embedded in each port
- MPEG-2 and MPEG-4 AVC/H.264 Decoding for video
- LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough for audio
- Supports CC / Subtitle
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | ||
| Typ / Type | HDI 2 SDI | |
| Artikel-Nr. / Article no. | 5741706 | |
| Eingang / Input | IP | 2x IP (MPTS/SPTS, 100M/1000M Ethernet RJ45, UDP-Protokoll / UDP protocol, Unicast/multicast) |
| ASI | 2x ASI bidirektional / ASI bidirectional, BNC 75 Ohm | |
| Decoder | Videoformat / Video format | MPEG-2, MPEG-4 AVC/H.264 |
| Schnittstelle / Interface | 2x SDI (SD / HD) | |
| Videoauflösung / Video resolution | 480i, 480p, 576i, 576p, 720p@50/59.94/60, 1080i@50/59.94/60 | |
| Audioformat / Audio format | MPEG-1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3-Durchschleifung / AC3 Passthrough | |
| Audiokanal / Audio channel | 2x Stereo-Audiosignale, die in jedem SDI-Anschluss eingebettet sind 2x Stereo audio signals embedded in each SDI port |
|
| Ausgang / Output | SDI | 2x SDI-Dekodierausgang (SD / HD) / 2x SDI decoding out (SD / HD) |
| ASI | 0 - 2x ASI-Ausgang / ASI output | |
| IP | 1x IP-Ausgang (UDP-Protokoll) / 1x IP output (UDP protocol) | |
| System | Unterstützt Netzwerkmanagement-Software (NMS) Network management software (NMS) supporting |
|
| Temperatur / Temperature | 0...45 °C (Betrieb / Operation) | |
| Netzanschluss / Power supply | AC 100...240 V±10%, 50/60 Hz | |
| Leistungsaufnahme / Power Consumption | ≤ 25 W | |
| Abmessungen (BxHxT) / Dimensions (WxHxL) | 482 x 44,5 x 328 mm | |
| Gewicht / Weight | 2,5 kg | |
