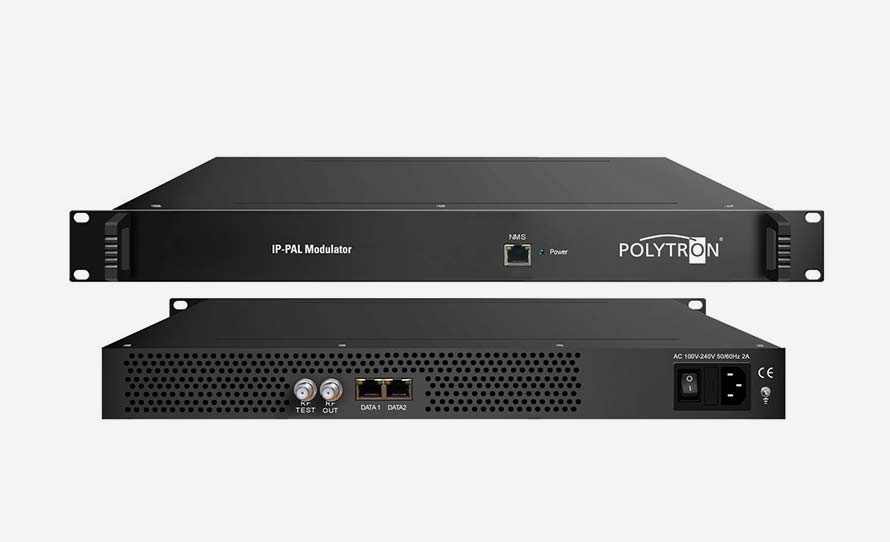

The HDI 16 PAL converts IPTV transport streams into 16x PAL/NTSC-M/SECAM.
The HDI 16 PAL is a modulator for converting IP input transport streams into 16 analog channels (PAL/NTSC M/SECAM).
The output bandwidth of 400 MHz can be flexibly allocated within the available frequency grid. Up to 16 analog TV channels can be generated from the input transport streams in HEVC/H.265, H.264/AVC, or MPEG-2 format. The device is versatile for converting IP signals to analog outputs, for example in hotels, hospitals, or residential complexes.
Configuration is conveniently carried out via a web-based network management system.
- 1U 19" housing
- Support for OSD display (logo and subtitles) for each channel
- Support for closed captioning, subtitles, and teletext
- Multiple audio selection possible
- 2 GE ports (max. 16 IP inputs via MPTS/SPTS), max. 840 Mbit/s per GE input
- Support for HEVC/H.265, H.264/AVC, and MPEG-2 TS decoding
- Up to 16 standard PAL, NTSC, or SECAM TV programs
- Output of 16 TV frequencies within 400 MHz, freely positionable within the frequency band
- Programming via web-based NMS management
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | ||
| Typ / Type | HDI 16 PAL | |
| Artikel-Nr. / Article no. | 5741711 | |
| Eingang / Input | ||
| Schnittstelle / Interface | 2 GE Ports, (max. 64 IP); max. 840 Mbit/s via 1x GE Port | |
| Protokoll / Protocol | UDP/RTP, Unicast/Multicast, IGMP V2/V3 | |
| Paketlänge / Packet length | 188/204 Bytes | |
| Dekoder / Decoder | ||
| Video | HEVC/H.265, H.264/AVC, MPEG-2 | |
| Audio | MPEG-1/2 Layer 1/2, (HE-)AAC, AC3 | |
| Daten / Data | CC, Teletext, Subtitles, DVB Subtitling | |
| Auflösung / Resolution |
HEVC/H.265 1080@60P, 1080@60I, 1080@50P, 1080@50I, 720@60P, 720@50P H.264/AVC 1080@60I, 1080@50P, 1080@50I, 1080@30P, 1080@25P, 720@60P, 720@50P, 576@50I, 480@60I MPEG2 1080@60I, 1080@50I, 720@60P, 720@50P, 576@50I, 480@60
|
|
| Seitenverhältnis / Aspect ratio | 4:3 | |
| Modulator / Modulator | ||
| Anzahl Kanäle / Number of channels | max. 16 | |
| Konnektor / Connector | F-Buchse / F female | |
| Frequenzbereich / Frequency range | 43,25 ... 951,25 MHz | |
| Ausgangspegel / Output level | -5 ... 5 dBm (102 ... 112 dBμV) | |
| Rückflussdämpfung / Return loss | ≥14 dB | |
| Nebenwellenabstand / Spurious frequency ratio | ≥60 dB | |
| TV-Norm / TV standard | PAL B/G/D/K/M/N/I, NTSC-M, SECAM | |
| Video-Signal-Rauschabstand / Video signal to noise ratio | ≥60 dB | |
| Träger-Rauschabstand / Carrier to noise ratio | ≥60 dB (1 Träger aktiv / single carrier active) ≥55,5 dB (16 Träger aktiv / 16 carrier active) |
|
| NMS / NMS | ||
| Management | 1 x 100 Base-T Ethernet (RJ 45) | |
| Daten / Data | 1 x 1000 Base-T Ethernet (RJ 45) | |
| Allgemein / Common | ||
| OSD | Logo : JPG, BMP, PNG Caption : Unterstützung mehrerer Sprachen / support multiple languages, Scrollrichtung und Geschwindigkeit individuell anpassbar / scrolling direction and speed customized | |
| Lautstärkeanpassung Ausgang / Output volume | Einstellbar / adjustable 0…100 % | |
| Abmesungen / Dimensions | 420 mm × 440 mm × 44,5 mm (BxTxH / WxDxH) | |
| Temperatur / Temperature | 0…45 °C (In Betrieb / operation), -20…80 °C (Lager / storage) | |
| Netzteil / Power supply | AC 100V ±10%, 50/60Hz or AC 220V ±10%, 50/60Hz | |
