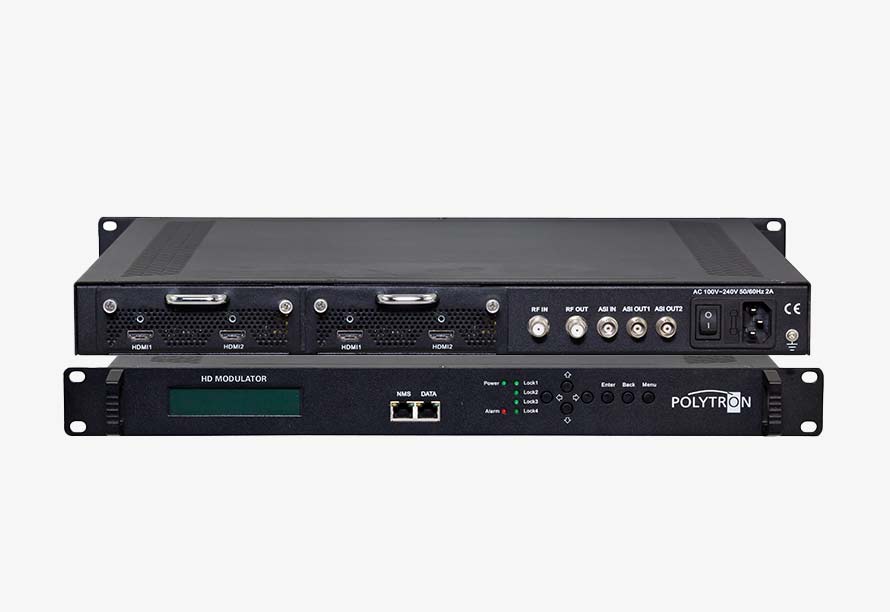

4x HDMI / ASI into DVB-C / ASI + IP modulator
The modulator HDM-4 C converts four HDMI signals and ASI into one DVB-C (QAM) channel. The signal is also available as IP stream and can be fed into IPTV networks. The ASI signal is available for further processing at two outputs.

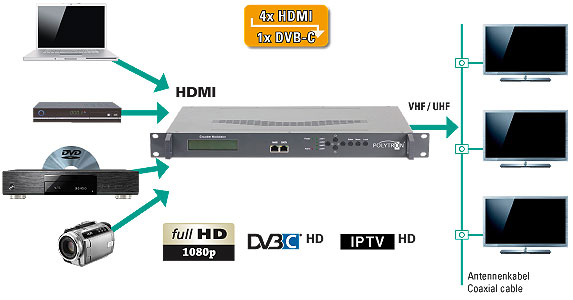

The video format can be either MPEG2 or MPEG4 standard. The device is wide range useable and can handle HDMI-signals from set-top-boxes, PC/notebooks, cameras, DVD players.
- 4x HDMI input: H.264 / MPEG 2 (1080p, 1080i, 720p)
- RF output: Digital HD (30-960 MHz)
- parallel HD IPTV stream
- best signal quality (MER>42 dB)
- high quality components
- built for continuous-running operation
- easy programming via display or PC
- fast installation
- for 19’’rack mounting
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Technical data | |
| Typ / Type |
HDM-4 C
|
| Artikel-Nr. / Article no. |
5741654
|
| Videoformat / Video encoding |
H.264 / MPEG2
|
| Eingang / Input |
4x HDMI / 1x ASI (BNC)
|
| Auflösung / Resolution |
1920x1080_60P ; 1920x1080_50P
1920x1080_60i ; 1920x1080_50i 1280x720_60P ; 1280x720_50P |
| Audioformat / Audio encoding |
MPEG1 Layer II
|
| Sampling Rate / Sample rate |
48 KHz
|
| Bit rate |
64, 96, 128, 192, 256, 320 kBps
|
| Ausgang / Output |
DVB-C
|
| Bandbreite / Band width |
6, 7, 8 MHz
|
| Modulation (gem. DVB-Standard) |
16 QAM...256 QAM
|
| Symbolrate / Symbol rate |
5...9 Msps
|
| MER |
≥ 42 dB
|
| Ausgangsfrequenz / Output frequency |
30...960 MHz, 1 kHz Step
|
| Ausgangspegel / Output level |
-30...-10 dBm (81–97 dBµV); 0,1 dB step
|
| IP-Anschlüsse / IP connectors |
RJ 45 Ethernet LAN
|
| IP-Verschlüsselungsstandard / IP encoding |
ETSI TS102034
|
| IP-Datenstrom / IP type of stream |
IPv4 Multicast (SMTP)
|
| Stromversorgung / Power supply |
100...240 VAC
|
| Betriebstemperatur / Operation temperature |
0...45 °C
|
| Leistungsaufnahme / Power consumption |
30 W
|
| Maße (B x H x T) / Dimensions (W x H x D) |
482 x 44 x 430 mm
|
| Gewicht / Weight |
4,5 kg
|
