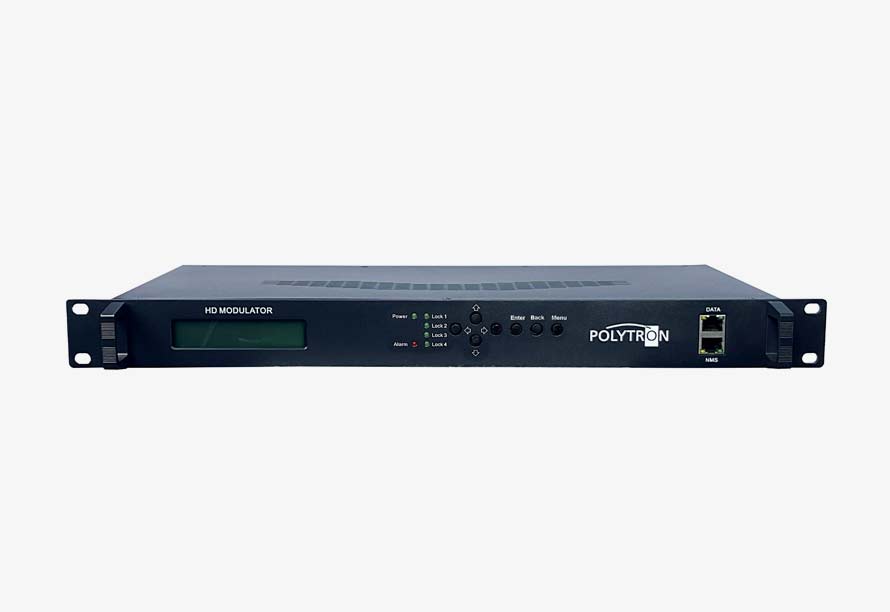

HDMI modulator 2x HDMI/ASI to DVB-T and IP/ASI
The HDM 2 T/IP modulator converts two HDMI signals and ASI into DVB-T (COFDM). The signals are also available as IP streams and can be fed into IPTV networks.
The ASI signal is available at two outputs for further processing. The video format used is MPEG-4 or, optionally, MPEG-2. The device is flexible in use and can process HDMI signals and ASI transport streams from media players, computers, cameras, DVD players, etc.
- Output video format MPEG-2 / MPEG-4
- HF output: DVB-T (50-960 MHz)
- Parallel IPTV stream
- Excellent signal quality (MER ≥ 42 dB)
- High-quality components
- Designed for continuous operation
- Easy programming via display or web browser
- Quick installation
- For 19" rack mounting
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Typ / Type | HDM 2 T/IP | ||
| Artikel-Nr. / Article no. | 5741694 | ||
| Encoder Video | MPEG2, MPEG4 AVC/H.264 | ||
|
Videoformat / Video Format
|
|||
| 2x HDMI | |||
| 1920*1080_60p, 1920*1080_50p, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1440*1080_60i, 1440*1080_50i, 1280*720_60p, 1280*720_50p 720*480_60i, 720*576_50i |
|||
| Normal, Mode 1, Mode 2, Manual | |||
| 16:9, 4:3 | |||
| 4:2:0 | |||
| Encoder Audio | MPEG1 Layer II;MPEG 2-AAC; MPEG 4-AAC, Dolby Digital AC3 2.0 48 kHz 64 kbps, 96 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps |
||
|
Audioformat / Audio Format Samplingrate / Sampling Rate |
|||
| Modulator | 4 | ||
| Ausgangskanäle / Output Channels Standard Konstellation / Constellation Coderate / Code Rate Guard-Intervall / Guard Interval FFT-Mode / FFT Mode Bandbreite / Bandwidth Ausgangsfrequenz / Output Frequency Ausgangspegel / Output Level |
|||
| DVB-T COFDM QPSK, 16 QAM, 64 QAM 1/2, 2/3, 3/4, 5/6, 7/8 1/32, 1/16, 1/8, 1/4 2K, 4K, 8 K 6 MHz, 7 MHz, 8 MHz 50…960 MHz (1 kHz-Schritte / steps) -20…-3 dBm (89…106 dBµV) pro Träger / per carrier (0,1 dB-Schritte / steps) |
|||
| System | 1x HF (F) / 1x RF (F), 2x ASI (BNC), IP (RJ45) 80 Mbps Web-Interface per Ethernet IP RJ45, 100 Mbps RJ45, 1000 Mbps (4 MPTS, 2 SPTS) ETSI TS 102034 IPv4 Multicast (SMPT) |
||
|
Ausgänge / Outputs Bitrate ASI |
|||
| Betriebsparameter / | 100…240 VAC (50/60 Hz) 0…45 °C 482 x 245 x 44 mm 3,7 kg |
||
| Stromversorgung / Power Supply Betriebstemperatur / Operating Temp. Abmessungen / Dimensions Gewicht / Weight |
|||
