1x HDMI in DVB-S - feed your own contents into multiswitch systems

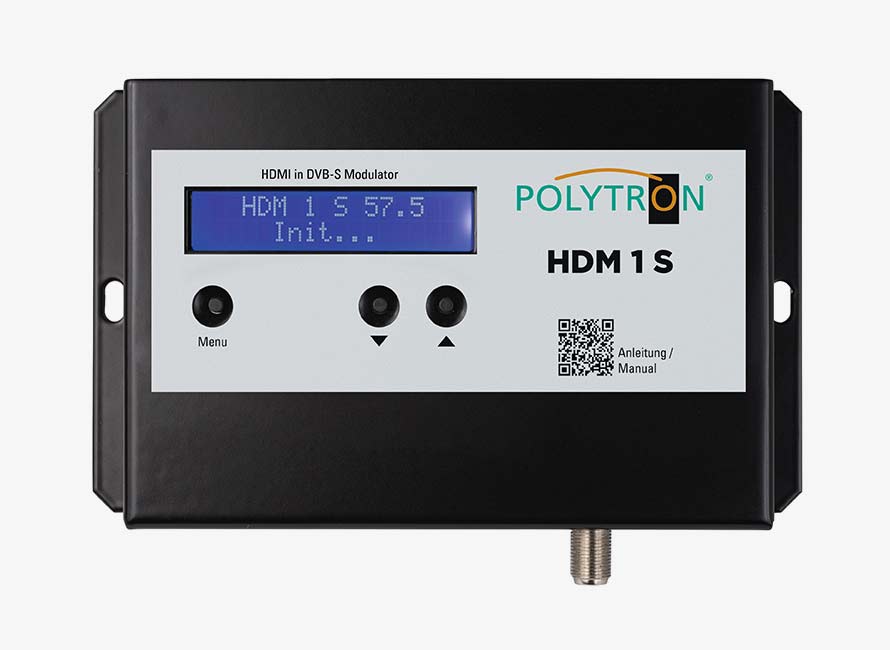

The POLYTRON HDM 1 S modulator converts one HDMI source into a DVB-S signal for feeding into distribution networks with multi-switches. This way, you can easily add your own content to reception systems in hotels, hospitals, retirement and nursing homes, waiting areas, sports bars, events or similar.
The HDM 1 S can be used flexibly and can process HDMI signals - without loss of content and quality - e.g. from computers, cameras, decoders or multimedia players.
Even Full HD signals are fully preserved without loss of quality. The output signals can be received by standard DVB-S/S2 receivers or TV sets with DVB-S/S2 tuners. It is also suitable for large distribution systems.
- Only one program list via DVB-S despite different signal sources
- No switching to another reception mode
- USB-C power supply unit and feed filter included in the scope of delivery
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | |
| Typ / Type |
HDM 1 S
|
| Artikel-Nr. / Article no. |
5741638
|
| Encoder Video | |
| Videoformat / Video Format |
MPEG 4 AVC/H.264
|
| Eingang / Input |
1x HDMI IN
|
| Auflösung / Resolution |
1920*1080_60/59.94/50P, 1280*720_60/59.94/50P
|
| Bit rate |
500...18000 kbps
|
| Encoder Audio | |
| Audioformat / Audio Format |
MPEG-1 Layer 2, AAC-LC
|
| Bit rate |
128, 192, 256, 320 kbps
|
| Modulator | |
| Ausgangskanäle / Output Channels |
1
|
| Standard |
DVB-S
|
| Bandbreite / Bandwidth | |
| Symbolrate / Symbol rate |
4000...22000 kSps
|
| FEC |
1/2, 2/3, 3/4, 5/6, 7/8
|
| Ausgangsfrequenz / Output Frequency |
950...1150 MHz (1 kHz-Schritte / steps)
|
| Ausgangspegel / Output Level |
-20...-5 dBm (89...104 dBµV)
(Dämpfung / attenuation 0...14 dB) |
| Betriebsparameter / Operating Parameters | |
| Stromversorgung / Power Supply |
5 VDC / 2 A (USB-C)
|
| Temperaturbereich / Temperature range | |
| Abmessungen / Dimensions |
252 x 165 x 52 mm
|
