Encoder modulator 1x HDMI to DVB-T/-C / DTMB or ATSC-T/-C

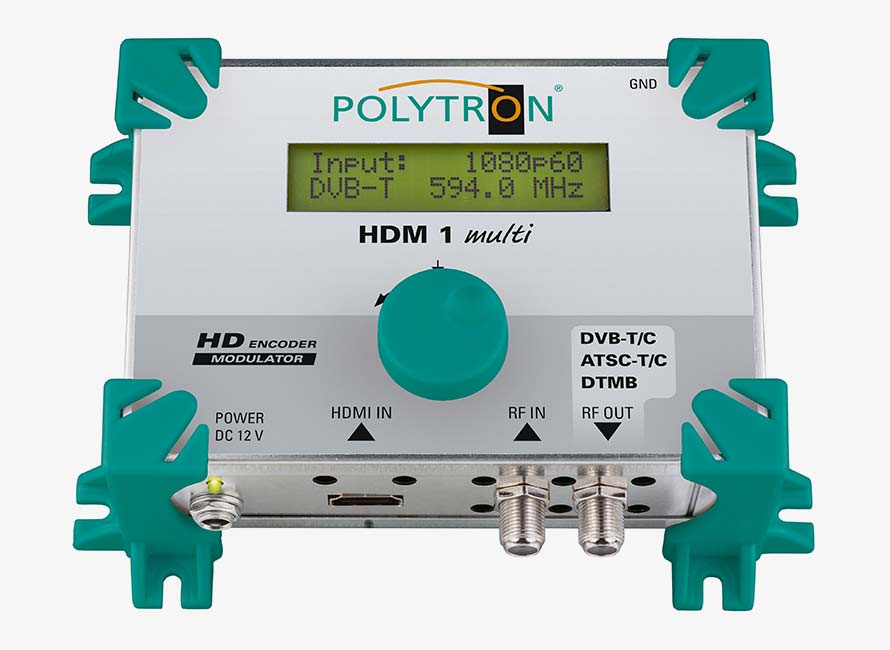

HDM 1 multi is a modulator for conversion of a HDMI signal into a DVB-T/-C / DTMB or ATSC-T/-C channel. The HDMI input supports all video resolutions up to 1080/60p.
A loop-through input is available for connection with external signal sources. The device is flexible and can process HDMI signals from receivers, computers, cameras, DVD players and many other devices. The modulator is operated with the supplied plug-in power supply unit.
- 1x HDMI input
- 1x RF loop-through input
- 1x RF output: DVB-T/-C, DTMB, ATSC-T/-C
- MER ≥ 38
- Stable output signal
- Clear menu structure
- Easy operation
- Small form factor
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Typ / Type |
HDM-1 multi
|
||||
| Artikel-Nr. / Article no. |
5741686
|
||||
|
HDMI-Eingang / HDMI input
|
|||||
| Video-Auflösung Video resolution |
1920*1080_50/60p, 1920*1080_50/60i, 1440*576_50i, 1440*480_60i,
1280*720_50/60p, 720*576_50p, 720*480_60p, 640*480_60p |
||||
| Video-Encoding / Video encoding |
H.264 / MPEG-4 AVC
|
||||
| Audio-Encoding / Audio encoding |
MPEG1 Layer II / AAC
|
||||
| Konnektortyp / Connector type |
HDMI Typ A
|
||||
|
HF-Eingang / RF input
|
|||||
| Frequenzbereich / Frequency range |
5...1218 MHz
|
||||
| Durchgangsdämpfung / Through loss |
2 dB
|
||||
|
HF-Ausgang / RF output
|
|||||
| Modulierte Kanalfrequenz / Modulated channel frequency |
174...1218 MHz
|
||||
| Ausgangspegel / Output level |
59...99 dBµV (einstellbar / adjustable)
|
||||
| MER |
= 38 dB
|
||||
| Ausgangsmodulation / Output modulation |
DVB-T
|
DVB-C
|
ATSC-T
|
ATSC-C
|
DTMB
|
| Bitrate / Bit rate | 2...23 Mbps | 2...23 Mbps | 2...15 Mbps | 2...23 Mbps | 2...23 Mbps |
| Kanalbandbreite / Channel bandwidth |
6, 7 oder / or 8 MHz
|
2...8 MHz
|
6 MHz
|
6 MHz
|
8 MHz
|
| Konstellation / Constellation |
QPSK
|
16QAM
|
8VSB
|
64QAM
|
QPSK
|
|
16QAM
|
32QAM
|
256QAM
|
QAM-4NR
|
||
|
64QAM
|
64 QAM
|
16QAM
|
|||
|
128QAM
|
32QAM
|
||||
|
256QAM
|
64QAM
|
||||
|
Weitere Einstellungen / Other settings
|
Code rate
|
/
|
/
|
/
|
Interleave
|
|
Guard interval
|
Code Rate
|
||||
|
2K-8K
|
Sync frame
|
||||
|
2K-8K
|
|||||
| Leistungsaufnahme / Power consumption |
6 W max.
|
||||
| Spannungsversorgung (ext. Netzteil) / Operating voltage (ext. power supply) |
12 VDC
|
||||
| Gewicht / Weight |
0,6 kg
|
||||
| Abmessungen (B x H x T) / Dimensions (W x H x D) |
155 x 120 x 60 mm
|
||||
- 1x HDMI input
- 1x RF loop-through input
- 1x RF output: DVB-T/-C, DTMB, ATSC-T/-C
- MER ≥ 38
- Stable output signal
- Clear menu structure
- Easy operation
- Small form factor
Scope of delivery
1 x HDM 1 multi
1 x User manual
1 x Plug-in power supply
| Typ / Type |
HDM-1 multi
|
||||
| Artikel-Nr. / Article no. |
5741686
|
||||
|
HDMI-Eingang / HDMI input
|
|||||
| Video-Auflösung Video resolution |
1920*1080_50/60p, 1920*1080_50/60i, 1440*576_50i, 1440*480_60i,
1280*720_50/60p, 720*576_50p, 720*480_60p, 640*480_60p |
||||
| Video-Encoding / Video encoding |
H.264 / MPEG-4 AVC
|
||||
| Audio-Encoding / Audio encoding |
MPEG1 Layer II / AAC
|
||||
| Konnektortyp / Connector type |
HDMI Typ A
|
||||
|
HF-Eingang / RF input
|
|||||
| Frequenzbereich / Frequency range |
5...1218 MHz
|
||||
| Durchgangsdämpfung / Through loss |
2 dB
|
||||
|
HF-Ausgang / RF output
|
|||||
| Modulierte Kanalfrequenz / Modulated channel frequency |
174...1218 MHz
|
||||
| Ausgangspegel / Output level |
59...99 dBµV (einstellbar / adjustable)
|
||||
| MER |
= 38 dB
|
||||
| Ausgangsmodulation / Output modulation |
DVB-T
|
DVB-C
|
ATSC-T
|
ATSC-C
|
DTMB
|
| Bitrate / Bit rate | 2...23 Mbps | 2...23 Mbps | 2...15 Mbps | 2...23 Mbps | 2...23 Mbps |
| Kanalbandbreite / Channel bandwidth |
6, 7 oder / or 8 MHz
|
2...8 MHz
|
6 MHz
|
6 MHz
|
8 MHz
|
| Konstellation / Constellation |
QPSK
|
16QAM
|
8VSB
|
64QAM
|
QPSK
|
|
16QAM
|
32QAM
|
256QAM
|
QAM-4NR
|
||
|
64QAM
|
64 QAM
|
16QAM
|
|||
|
128QAM
|
32QAM
|
||||
|
256QAM
|
64QAM
|
||||
|
Weitere Einstellungen / Other settings
|
Code rate
|
/
|
/
|
/
|
Interleave
|
|
Guard interval
|
Code Rate
|
||||
|
2K-8K
|
Sync frame
|
||||
|
2K-8K
|
|||||
| Leistungsaufnahme / Power consumption |
6 W max.
|
||||
| Spannungsversorgung (ext. Netzteil) / Operating voltage (ext. power supply) |
12 VDC
|
||||
| Gewicht / Weight |
0,6 kg
|
||||
| Abmessungen (B x H x T) / Dimensions (W x H x D) |
155 x 120 x 60 mm
|
||||
