HDMI-Modulator, 1xHDMI IN, 1xDVB-C OUT, Remote Control Option

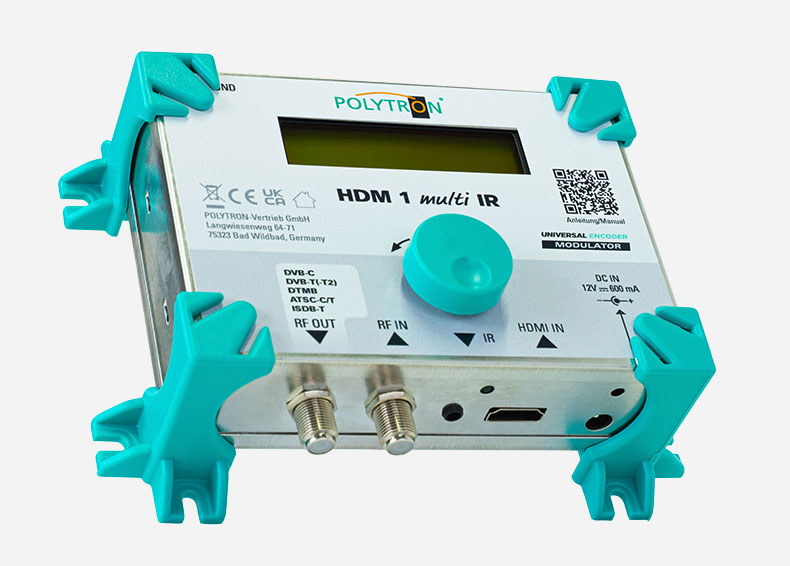

The HDM 1 Multi IR is a compact and powerful HDMI modulator for converting an HDMI signal into an RF channel. It supports all common cable and terrestrial TV standards such as DVB-C, DVB-T/T2, DTMB, ISDB-T, and ATSC-T/C, making it universally applicable.
The HDMI input handles video resolutions up to 1080p60 and is suitable for a wide range of sources, such as media players, computers, cameras, or other HDMI-compatible devices. The optional IR Link function, which can be activated with the HDM IR Remote Control Set, provides additional convenience by enabling remote control of the connected source.
Thanks to H.264/AVC and MPEG-2 encoding, the device delivers a stable, high-quality output signal with a typical MER value of 38 dB. The clear menu navigation and ease of use make setup particularly user-friendly.
With its small form factor and power supply via the included AC adapter, the HDM 1 Multi IR is the ideal solution for professional installations and applications where reliability and image quality are crucial.
Key features:
- H.264/AVC and MPEG-2 encoding
- 1x HDMI input
- 1x RF loop-through input
- 1x RF output: DVB-C, DVB-T/T2, DTMB, ISDB-T, ATSC-T/C
- MER typ. 38
- Stable output signal
- Clear menu structure
- Easy to use
- Small form factor
- Accessories: HDM IR
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Typ / Type |
HDM 1 multi IR
|
||||||
| Artikel-Nr. / Article no. |
5741688
|
||||||
| Encoder Video | |||||||
| Videoformat / Video Format | H.264/AVC / MPEG-2 | ||||||
| Eingang / Input | 1x HDMI IN / 1x HDMI loop (HDMI type A) | ||||||
| Auflösung / Resolution | 480i … 1080p | ||||||
| Encoder Audio | |||||||
| Audioformat / Audio Format | MPEG-1 Layer 2, AAC | ||||||
| Modulator | |||||||
| Ausgangskanäle / Output Channels | 1 | ||||||
| Standard | DVB-T | DVB-T2 | DVB-C | ATSC-T | ATSC-C | DTMB | ISDB-T |
| Bitrate (Mbps) | 2…31,5 | 2…40 | 2…50,5 | 2…19 | 2…26,5 | 2…32 | 2…23 |
| Bandbreite / Bandwidth (MHz) | 6, 7, 8 | 6, 7, 8 | 2, 8 | 6 | 6 | 6, 8 | 6, 7, 8 |
| Konstellation / Constellation | COFDM (QPSK/ 16 QAM/ 64 QAM) | COFDM (QPSK/ 16 QAM/ 64 QAM) | 16 QAM 32 QAM 64 QAM 128 QAM 256 QAM |
8VSB | 64 QAM | 4 QAM QAM-4NR 16 QAM 32 QAM 64 QAM |
COFDM (QPSK/ 16 QAM/ 64 QAM) |
| Weitere Einstellungen / Other Settings | Code rate Guard Interval 2K-8K |
Interleave Code rate 2K-8K Sync frame PN phase |
Code rate Guard Interval 2K-8K |
||||
| Ausgangsfrequenz / Output Frequency | 174…1000 MHz | ||||||
| Ausgangspegel / Output Level | 50…95 dBµV / OFF | ||||||
| MER | typ. 38 dB | ||||||
| HF-Eingang / RF input | Durchschleifung / loop through | ||||||
| Frequenz / Frequency | 5…1218 MHz | ||||||
| Dämpfung / Loss | 2 dB | ||||||
| Zubehör / Accessories | Remote control set HDM IR | ||||||
| Betriebsparameter / Operating Parameters | |||||||
| Stromversorgung / Power Supply | Remote control set HDM IR | ||||||
| Abmessungen / Dimensions | 155 x 120 x 60 mm (B/W x H x T/D) | ||||||
| Gewicht / Weight | 0,6 kg | ||||||
