1x HDMI into DVB-C + IP

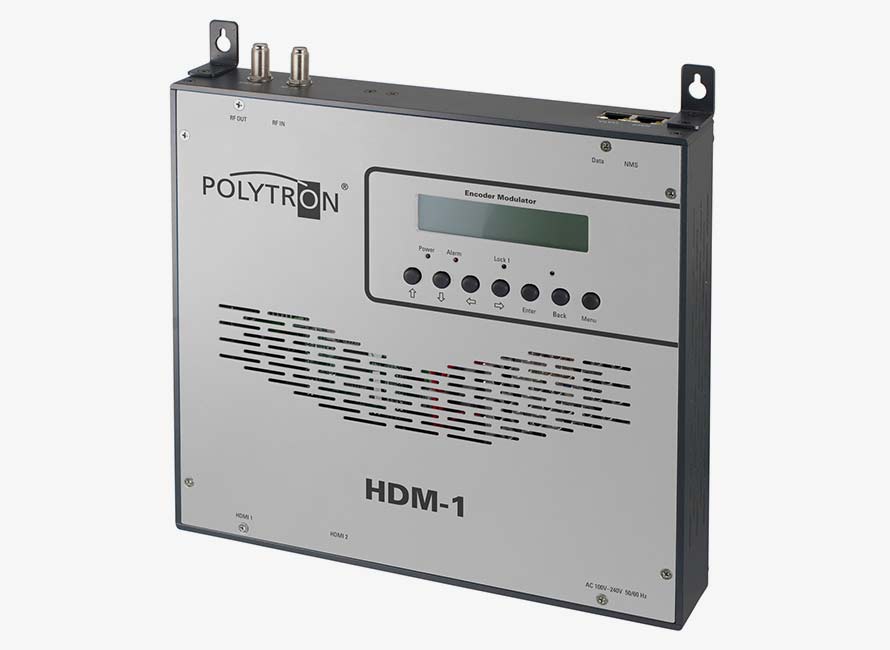

The modulator HDM-1 C converts a HDMI signal into a DVB-C (QAM) channel. The signal is also available as IP stream and can be fed into IPTV networks. The used video format is MPEG 4 or alternatively MPEG 2.
- HDMI input: FULL HD (1080p, 1080i, 720p)
- RF output: Digital HD (30-960 MHz)
- parallel HD IPTV stream
- best signal quality (MER>42 dB)
- high quality components
- built for continuous-running operation
- easy programming via display or PC
- fast installation
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Technical data | |
| Typ / Type |
HDM-1 C
|
| Artikel-Nr. / Article no. |
5741650
|
| Videoformat / Video Encoding |
MPEG 2 / MPEG 4
|
| Eingang / Input |
HDMI
|
| Auflösung / Resolution |
1920x1080_60P ; 1920x1080_50P
1920x1080_60i ; 1920x1080_50i ; 1280x720_60P ; 1280x720_50P 720x480_60i ; 720x576_50i |
| Audioformat / Audio Encoding |
MPEG1 Layer II
|
| Sampling Rate / Sample rate |
48 KHz
|
| Bit rate |
64, 96, 128, 192, 256, 320 kBps
|
| Ausgang / Output |
DVB-C
|
| Bandbreite / Bandwidth |
6, 7, 8 MHz
|
| Modulation (gem. DVB-Standard) |
16 QAM–256 QAM
|
| Symbolrate / Symbol rate |
5000–9000 MS/s
|
| MER |
≥ 42 dB
|
| Ausgangsfrequenz / RF frequency |
30–960 MHz, 1 kHz Step
|
| Ausgangspegel / RF output level |
-30...-10 dBm (81–97 dBµV); 0,1 dB step
|
| IP-Anschlüsse / IP connectors |
RJ 45 Ethernet LAN
|
| IP-Verschlüsselungsstandard IP encoding standard |
ETSI TS102034
|
| IP-Datenstrom / IP type of streaming |
IPv4 Multicast
|
| Stromversorgung / Power supply |
100...240 VAC
|
| Leistungsaufnahme / Power consumption |
30 W
|
| Betriebstemperatur / Operation temp. |
0–45 °C
|
| Maße (B x H x T) Dimensions (W x H x D) |
250 x 268 x 44 mm
|
