POLYTRON SAT IF Converter TSM 32 HD

The SAT converter

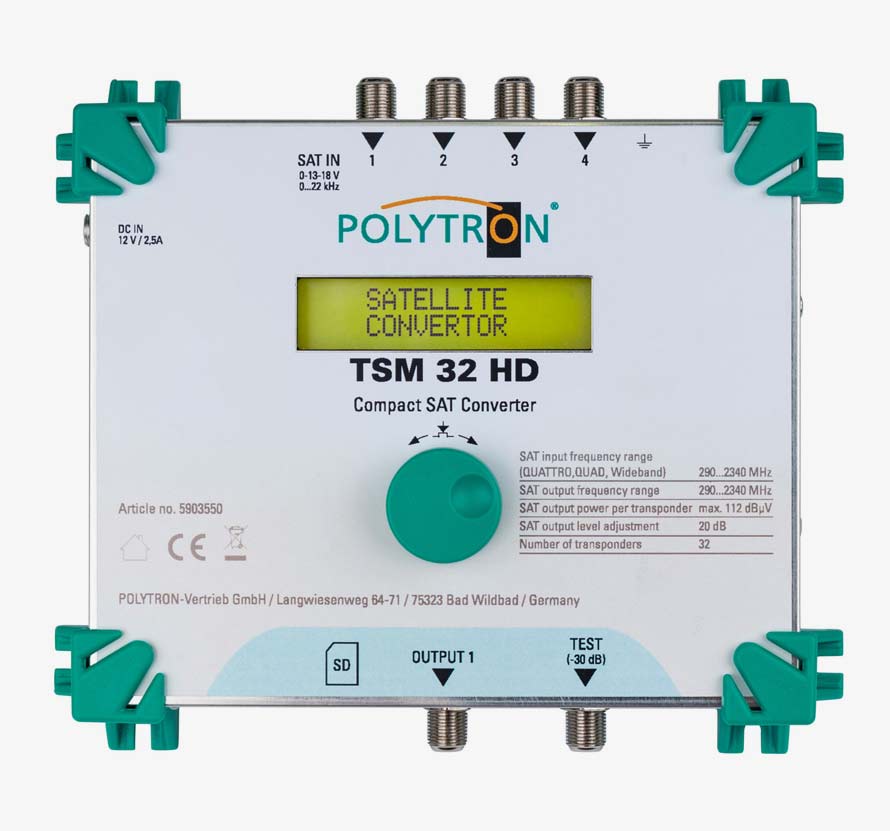

The TSM 32 HD SAT converter converts SAT signals from 4 inputs to frequencies in the range of 290 to 2150 MHz (290 to 2340 MHz for wideband). Every desired DVB-S/S2 SAT transponder is converted from its original frequency position into a freely selectable frequency grid. Unwanted transponders are no longer included in the output signal.

Quattro, quad or wideband LNBs can be connected to the SAT inputs. The TSM 32 HD converts any 32 DVB-S or DVB-S2 transponders (QPSK / 8PSK) into any 32 output frequencies. The output frequency range can be set individually from 950 to 2150 MHz (290 to 2340 MHz for wideband). This frequency range can be fed into an existing, SAT-compatible coaxial distribution network. It is irrelevant whether it is a network with a star, tree or mixed structure.

Participants can receive all programs on the transponders with a standard DVB-S/S2 receiver or TV set with an integrated DVB-S/S2 tuner. It is irrelevant whether the individual programs are broadcast in HDTV, as pay TV or as free-to-air signals. The device can be programmed using the rotary knob at the front. The display guides through the menu and shows the set parameters.
