With web-based control

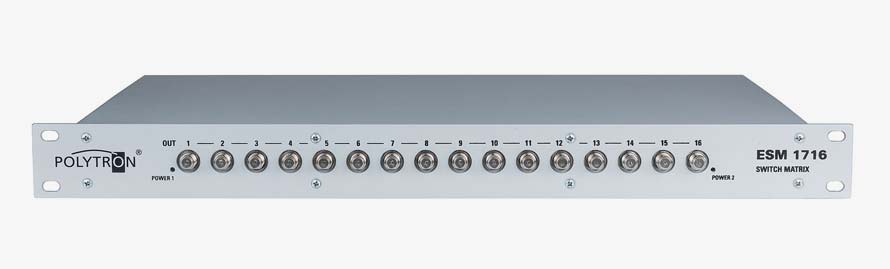

The ESM 1716 WEB switching matrix from POLYTRON enables flexible delivery of SAT IF and terrestrial signals to signal processing and distribution systems, monitoring and recording systems, and test and inspection stations.
The web-based control of the switching matrix makes it easy and quick to adapt the output signals to changing requirements. The input distribution of the switching matrix remains unchanged. The switching matrix has 16 SAT and one terrestrial input. The selected polarization planes are available at each of the 16 outputs.
- Made in Germany
- Version with redundant power supply available ESM 1716 WEB (item no. 5552282)
- Version without web browser function available for fixed multiswitch operation
- ESM 1716 FX (item no. 5552290)

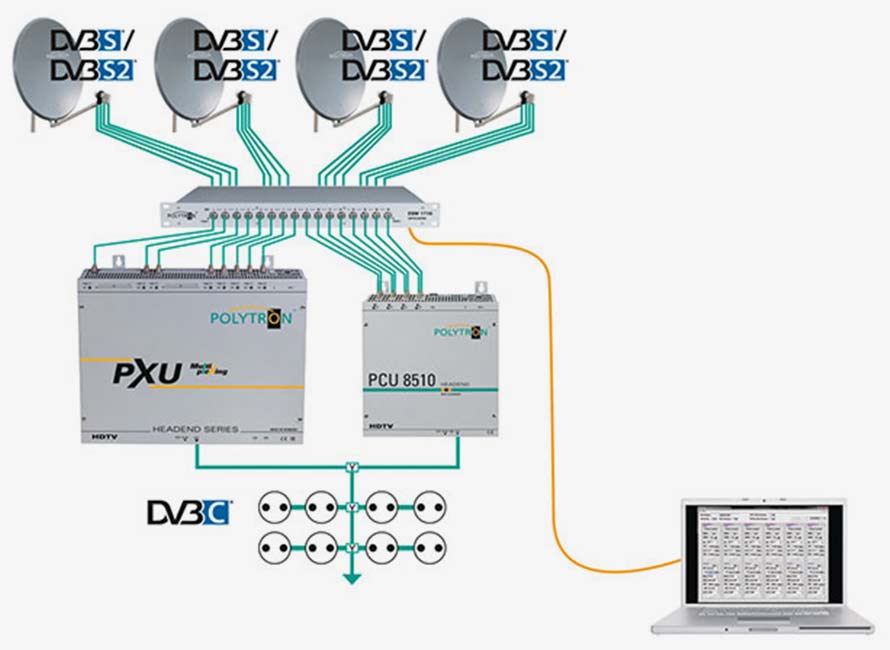

Possible areas of application, e.g., as an input distribution panel for headend systems:
- Quick response to changes in transponder frequencies.
- Easy adjustment of program offerings (e.g., foreign-language programs in hotels).
- Easy activation of smart cards whose activation data is transferred to other transponders.
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | |||
| Typ / Type |
ESM 1716 WEB
|
|
ESM 1716 FX
|
| Artikel-Nr. / Article no. |
5552282
|
|
5552290
|
| Eingänge / Inputs |
17
|
||
| Ausgänge / Outputs |
16
|
||
| Impedanz Ein-/Ausgänge / Impedance inputs/outputs |
75 Ohm
|
||
| Frequenzbereich Eingang SAT / Frequency range input sat |
950...2150 MHz
|
||
| Frequenzbereich Ausgang / Frequency range output |
10...2150 MHz
|
||
| Frequenzbereich terr. (optional) / Frequeny range terr. (optional) |
18...862 MHz
|
||
| Anschlussdämpfung terr. (optional) / Connection loss terr. (optional) |
16 dB
|
||
| Anschlussdämpfung SAT / Connection loss SAT |
-4...0 ±1,5 dB
|
||
| Entkopplung der Ebenen / Isolation lines |
30 dB
|
||
| Rückflussdämpfung Ein-/Ausgänge / Return loss inputs/outputs |
12 dB
|
||
| Max. Ausgangspegel SAT / Max output level SAT |
103 dBµV
|
||
| Max. Ausgangspegel terr. / Max output level terr. |
Passiv
|
||
| LNB Spannung / LNB voltage |
15 V
|
||
| LNB-Stromversorgung / LNB supply |
max. 500 mA je Stammleitung / per trunk line | gesamt / in total 2000 mA
|
||
| Stromaufnahme Ausgänge/ Power consumption outputs |
35 mA
|
||
| Netzteil / Power supply |
90...265 VAC (47...63 Hz), 15 VDC / 3,3 A
|
||
| Redundantes Netzteil / Redundant power supply |
Nein / No
|
Ja / Yes
|
Nein / No
|
| Web Browser Administration |
Ja / Yes
|
Ja / Yes
|
Nein / No
|
| Abmessungen (LxBxH) / Dimensions (WxDxH) |
482,6 x 310 x 44,5
|
||
| Temperaturbereich / Temperature range |
0...55 °C
|
||
