Conversion of Twelve SAT Transponders with Input Distribution

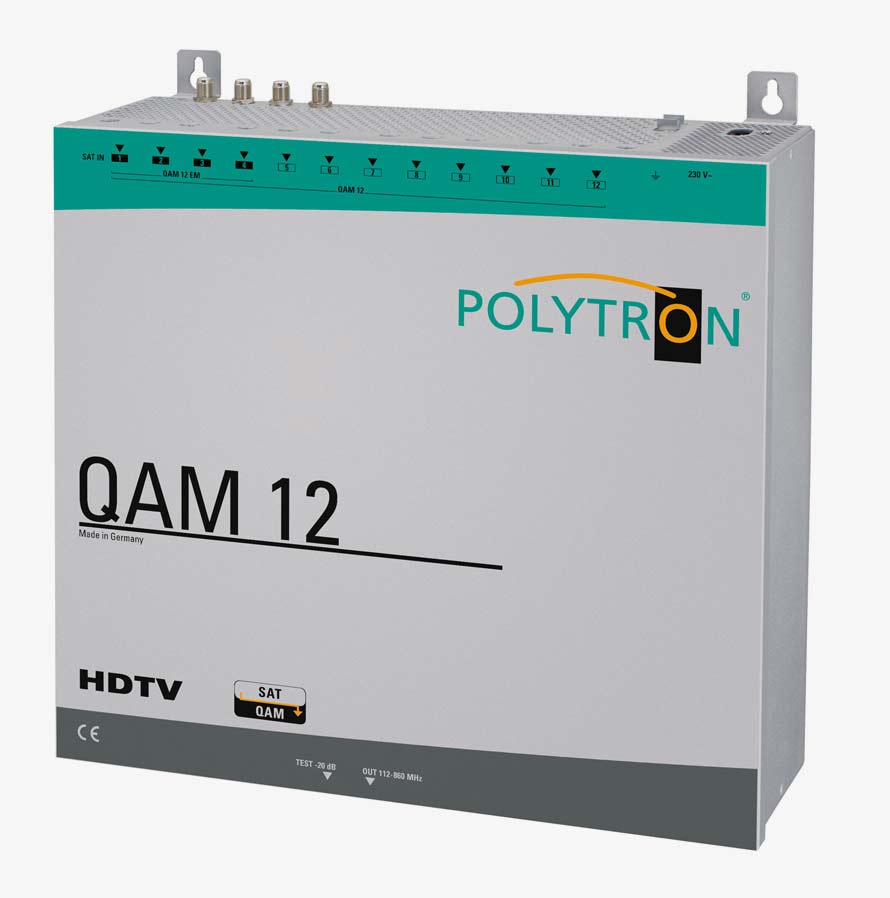

The QAM 12 LAN headend converts twelve SAT transponders into twelve DVB-C channels. The integrated switching matrix enables fast and simple installation, as only four SAT levels need to be connected.
The preprogrammed headend can be quickly and easily reprogrammed via the USB or LAN interface if needed. Features such as LCN, NIT, TSP, and LAN control complete the practical range of functions.
- 12x DVB-S/S2 to DVB-C
- Built-in 4-to-12 switching matrix
- 81 TV programs preconfigured
- MPEG-2 and MPEG-4 compatible
- Output channels freely selectable between 112–862 MHz
- Adjacent channel capable
- LCN
- Signal attenuation 0–12 dB
- Integrated LNB power supply
- Temperature-controlled fans
- Transponder content erasable
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Technical Data | ||
| Typ / Type | QAM 12 LAN | |
| Artikel-Nr. / Article no. | 5552024 | |
| Eingangspegel / Input level | 50...80 dBµV | |
| LNB-Versorgung / LNB supply | 12 V / max. 2 x 250mA | |
| SR DVB-S / QPSK | 1...45 MS/s | |
| SR DVB-S2 / QPSK | 1...45 MS/s | |
| SR DVB-S2 / 8PSK | 1...37 MS/s | |
| Modulation type DVB-C | (in accordance to the DVB standard) | |
| Signal constellation | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM | |
| Symbol rate | 1...7,2 MS/s | |
| Bandbreite / Bandwidth | 7 / 8 MHz (depending of the Symbolrate) / a=0,15 | |
| Datenrate / Data rate | max. 53 Mbit/s | |
| Ausgang / Output | ||
| Ausgangs-Frequenzbereich / Output frequency range | 112...862 MHz | |
| Ausgangspegel / Output level | 90 dBµV | |
| Kanaldämpfung / Channel attenuation | 0...12 dB | |
| MER |
≥ 40 dB |
|
| Leistungsaufnahme / Power consumption | inkl. 500 mA LNB: < 60W | |
| Spannungsversorgung / Operating voltage | 180...265 V~ | |
| Betriebstemperatur / Operating temperature | 0°...45° C | |
| Maße (H x T x B) / Dimensions (H x D x W) | 360 x 125 x 380 mm | |
