IP stream from HTTP, HTTPS (HLS), SRT, UDP, RTP, RTSP, and HLS to HTTP, SRT, UDP, HLS, and RTMP protocol.
The HDI 8-8 IP II is used for protocol conversion and streaming media applications. The device converts the IP stream from HTTP, UDP, RTP, RTSP, and HLS to HTTP, UDP, HLS, and RTMP.

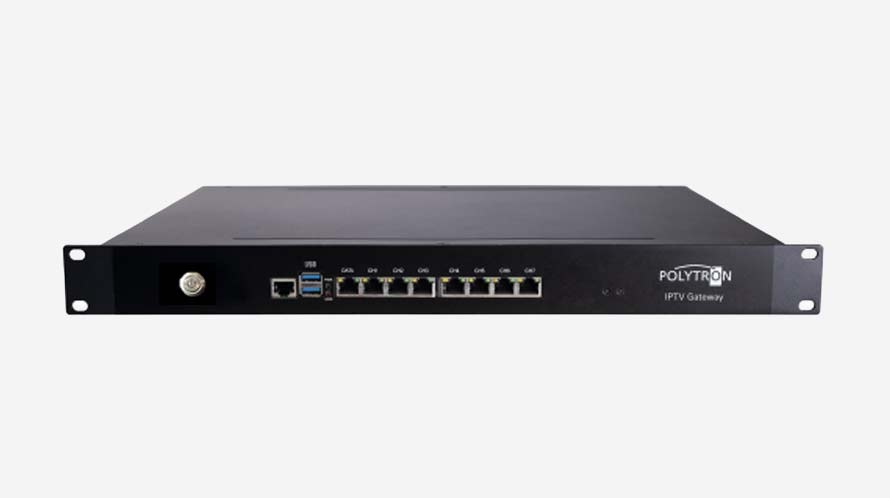

The HDI 8-8 IP II IPTV Gateway is a highly integrated device that combines an IP gateway and an IPTV server in one device. It is used for protocol conversion and streaming media applications and converts the IP stream from HTTP, HTTPS (HLS), SRT, UDP, RTP, RTSP, and HLS to HTTP, SRT, UDP, HLS, and RTMP protocols. Furthermore, an IPTV system is integrated, which allows VOD applications to be implemented, especially in small CATV headend systems or in hotel TV systems.
- IP gateway + IPTV server in one device
- Separate management of IP gateway and IPTV server
- SRT, HTTP, UDP, RTP, RTSP, and HLS in SRT, HTTP, UDP, HLS, and RTMP
- IPTV functions: Live channels, VOD, hotel intro, dining, hotel services, apps
- Gateway module
- Supports IP anti-jitter function
- Programming via web-based NMS management
- Supports uploading TS files via web management
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | |||
| Typ / Type |
HDI 8-8 IP II
|
||
| Artikel-Nr. / Article no. |
5741713
|
||
| Eingang / Input |
CH 1-7(1000 Mbit/s) Ports: IP-Eingang via SRT, HTTP, HTTPS (HLS),
UDP (SPTS), RTP (SPTS), RTSP (via UDP, payload: MPEG TS) und HLS
TS-Files Upload via Webmanagement
|
||
| IP-Ausgang / IP output |
DATA Port (1000 Mbit/s): IP-Ausgang via SRT, HTTP (Unicast), UDP (SPTS, Multicast) HLS und RTMP (Programmquelle H.264 und AAC-Encoding)
CH 1-7 (1000 Mbit/s) Port: IP-Ausgang via SRT, HTTP, HLS und RTMP (Unicast))
|
||
| System | |||
| RAM/SSD |
8GB/120GB
|
||
| CPU / CPU |
3517/2537/3667/3687
|
||
|
Unterstützt 80 HD/SD-Programme (Bitrate: 2Mbps) für SRT/HTTP/RTP/RTSP/HLS Konvertierung in UDP (Multicast), Vorrang tatsächliche Anwendung, max. 80% CPU-Auslastung
Webbasiertes NMS Management via Modul-CH1-Port
|
|||
| Abmessungen / Dimensions |
482 mm × 324 mm × 44 mm (BxTxH)
|
||
| Temperatur / Temperature |
0…45 °C (im Betrieb), -20…80 °C (Lager)
|
||
| Netzteil / Power supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
|
||
