HTTP, HTTPS, UDP, RTP, RTSP, SRT, HLS, and TS files in HTTP, UDP, SRT, HLS, and RTMP protocols

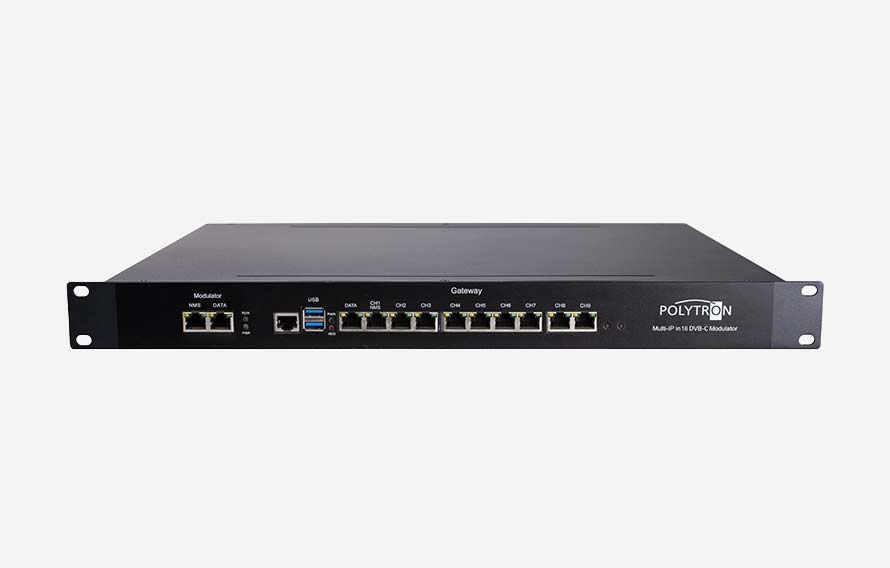

The HDI 256-16 C II IPTV modulator is a highly integrated device that contains two completely independent modules.
An IPTV gateway module used for protocol conversion and streaming media applications that converts IP streams from HTTP, HTTPS, UDP, RTP, RTSP, SRT, HLS, and TS files into HTTP, UDP, SRT, HLS, and RTMP protocols.
The second module is a modulator that provides IP input and IP output as well as DVB-C output and can process the signal directly from the integrated IP gateway. The HDI 256-16 C II thus offers reception of various IP protocols (HTTP, HTTPS, UDP, RTP, RTSP, SRT, and HLS) as well as their direct modulation into DVB-C channels in a single device. Thanks to its high performance, the HDI 256-16 C II is ideal for use in digital CATV headends, studios, and IPTV/OTT systems, offering operators various solutions for program redistribution.
- IP gateway module + IP modulator module in one device
- IP input (HTTP, HTTPS, UDP, RTP, RTSP, SRT, and HLS) in 16x DVB-C output
10 data ports - Transmission of IP stream to modulator via data port
- Max. 512 IP inputs/outputs via data/data 1/2 port
- Reception of IP stream from IP gateway directly via data port
- Supports IP anti-jitter function
- Programming of the 2 modules via separate web-based NMS management
- Supports upload of TS files via web management
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | |||
| Typ / Type | HDI 256-16 C II | ||
| Artikel-Nr. / Article no. | 5741714 | ||
| Input | CH 1-7(1000 Mbit/s) Ports: IP-Eingang via HTTP/HTTPS, SRT,UDP(SPTS), RTP(SPTS), RTSP (via UDP, payload: MPEG TS) und HLS | ||
| IP output | DATA Port (1000 Mbit/s): IP-Ausgang via HTTP (Unicast), UDP(SPTS, Multicast), SRT, HLS und RTMP (Programmquelle H.264 und AAC-Encoding) CH 1-9 (1000 Mbit/s) Port: IP-Ausgang via HTTP, HLS, SRT, RTMP (Unicast) | ||
| System |
Speicher / Memory: 8G DATA Port (1000 Mbit/s): IP-Ausgang via HTTP (Unicast), UDP(SPTS, Multicast), SRT, HLS und RTMP (Programmquelle H.264 und AAC-Encoding) CH 1-9 (1000 Mbit/s) Port: IP-Ausgang via HTTP, HLS, SRT, RTMP (Unicast) Webbasiertes NMS Management via Modul-DATA-Port |
||
| Modulator module | |||
| Eingang / Input | Eingang / Input | Max. 512 IP-Streams via DATA 1 oder DATA 2 / Max. 128 IP-Streams via DATA TS over UDP/RTP, Unicast und Multicast, IGMP V2/V3 Max 840Mbps pro Eingangskanal | |
| MUX | Kanäle | Eingang: 512 / Ausgang: 16 | |
| Max. PIDs | 180 pro Kanal | ||
| Funktionen | PID remapping(auto/manuell, optional), PCR-Einstellung, Generierung PSI/SITabellen | ||
| Scrambling | Max. Simulscrypt CA | 4 | |
| Scramble-Standard | ETR289, ETSI 101 197, ETSI 103 197 | ||
| Anschluss | Lokal oder Fernzugriff | ||
| Modulationsparameter | Ausgangskanäle | 16 | |
| Standard |
|
||
| Konstellation |
|
||
| Bandbreite |
|
||
| Symbolrate | 5.0…7.0 MSps (1 kSps Schritte) | ||
| HF-Ausgang | Konnektor | F-Buchse, 75 Ohm | |
| Frequenzbereich | 50…960 MHz, 1 kHz Schritte | ||
| Ausgangspegel | -20…+10 dBm (Summenpegel), 0.1 dB Schritte | ||
| MER | ≥ 40 dB | ||
| FEC | ≥ 40 dB | ||
| TS-Ausgang | 16x IP-Ausgang via UDP/RTP/RTSP, Unicast/Multicast, 2x 100/1000Mbit/s Ethernet Ports (DATA1/DATA2) | ||
| System | Web-based Netzwerk-Management | ||
| Allgemein | |||
| Abmessungen | 482 mm × 324 mm × 44 mm (BxTxH) | ||
| Temperatur | 0…45 °C (im Betrieb), -20…80 °C (Lager) | ||
| Netzteil | AC 100V±10%, 50/60Hz oder AC 220V±10%, 50/60Hz | ||
