Equalizers
Equalizers for forward or return path compensate the increasing attenuation of passive components to higher frequencies.
POLYTRON amplifiers keep what their robust die-cast housing promises and they will convince you with their reliable electrical values.
For more than 40 years POLYTRON has reached top grades with amplifiers of all kinds.
All POLYTRON amplifiers are made in Germany and stand out with highest quality and durability.
Return path modules for HC-series
The return path modules are no longer available.

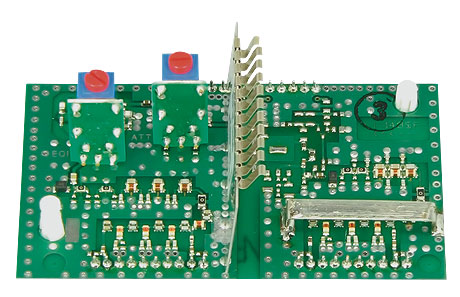

Return path module for HA-series amplifiers
- 1 set-point bridge each for attenution and equalization
- diplex filters integrated
Please note: the return path modules HA-RPM 30/30 and HA-RPM 30-65 cannot be used in amplifier HA 45125.
| Technische Daten / Technical data | ||||||
| Rückkanalmodule / Return path module |
passiv / passive
|
aktiv / active
|
||||
| Typ / Type |
HA-RPM 0/30
|
HA-RPM 0/65
|
|
HA-RPM 20/65
|
HA-RPM 30/30
|
HA-RPM 30/65
|
| Artikel-Nr. / Article no. |
1487900
|
1488000
|
|
1488400
|
1488310
|
1488410
|
| Frequenzbereich / Frequency range |
4-30 MHz
|
4-65 MHz
|
|
4-65 MHz
|
4-30 MHz
|
4-65 MHz
|
| Verstärkung / Gain |
-1 dB
|
-1 dB
|
|
20 dB
|
30 dB
|
30 dB
|
| Pegelsteller / Attenuator |
1 Steckplatz / slot
|
|||||
| Rauschmaß / Noise figure IMA3 |
4 dB
|
|||||
| Entzerrer / Equalizer |
1 Steckplatz / slot
|
|||||
| Max. Ausgangspegel / Max. output level |
/
|
/
|
|
117 dBµV
|
117 dBµV
|
117 dBµV
|
| Gewicht / Weight |
0,050 kg
|
|||||
Line amplifiers
For large networks with high channel concentration

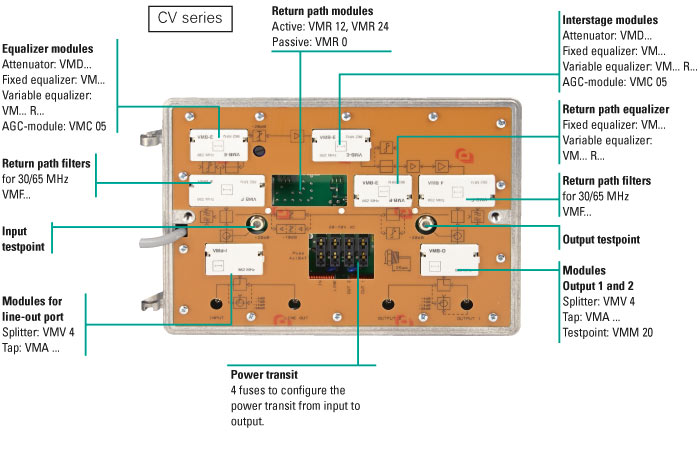

CV amplifiers are CATV amplifiers. The devices are highly flexible due to a multitude of plug-in modules.
POLYTRON amplifier CV 40126 N, CV 40126 F
0 dB / 126 dBµV Line amplifier for networks with channel concetration.
The POLYTRON CV-line-amplifier series caters for the building of larger distribution systems with a high channel concentration.
POLYTRON amplifier CV 30126 N, CV 30126 F
Line amplifiers for networks with high channel concentration, configuration with plug-in modules.
The POLYTRON CV-line-amplifier series caters for the building of larger distribution systems with a high channel concentration.
POLYTRON distribution amplifier HV 40126 F, HV 40126 N
Distribution amplifier for CATV, configuration with plug-in modules
The HV-series broadband amplifiers build a full amplifier system for the expansion of full service networks.
