High-performance broadband amplifier for cable networks with return channel support

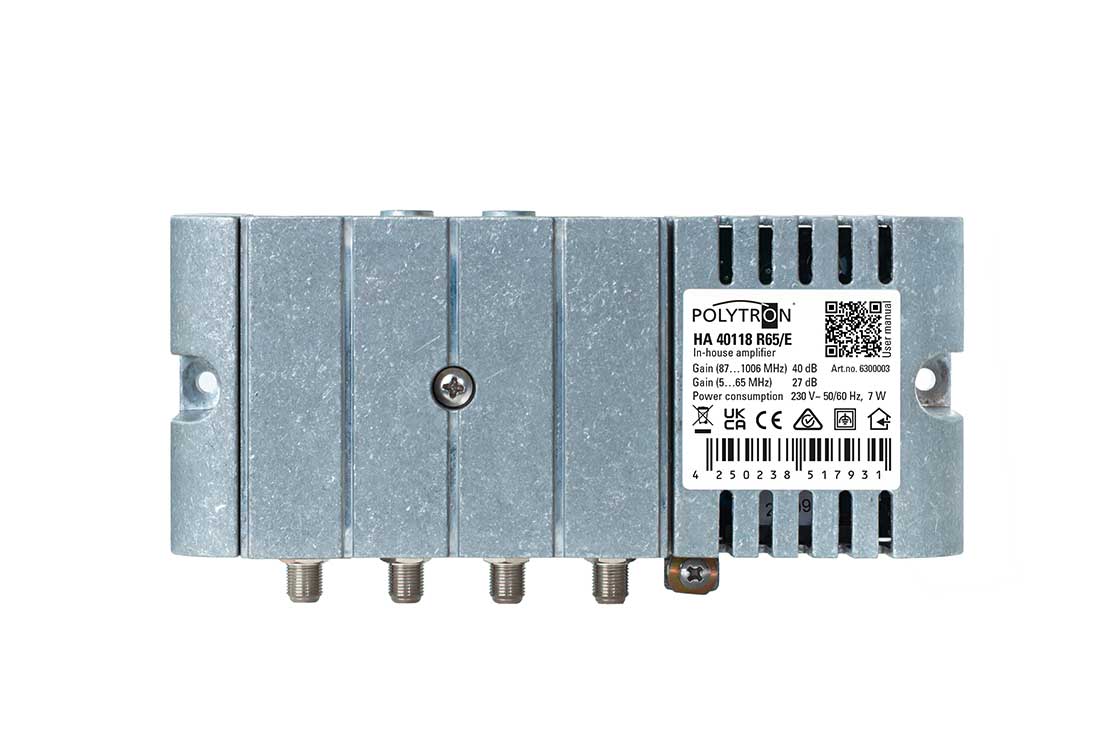

The HA 40118 R65/E in-house amplifier is used for amplifying RF signals in cable television networks.
The amplifier is powered locally and features one input, one output, and test points for both input and output. The amplifier offers a frequency range of 87...1006 MHz downstream and 5...65 MHz upstream. Upstream and downstream settings are adjusted seamlessly via DIP switches or potentiometers.
Key features:
- Frequency range 5-1006 MHz
- Adjustment via potentiometer
- Interstage equalization 0/5/10 dB fixed
- Integrated return channel passive/active
- Die-cast housing
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | |
| Typ / Type |
HA 40118 R65/E
|
| Artikel-Nr. / Article no. |
6300003
|
| Downstream | |
| Frequenzbereich / Frequency range | 87 ... 1006 MHz |
| Verstärkung / Gain | 40 dB |
| Pegelsteller / Attenuator | 0 ... 18 dB |
| Entzerrer / Equalizer | 0 ... 18 dB |
| Interstage Entzerrer / Equalizer | -10/-5/0 dB |
| Interstage Dämpfer / Attenuator | -10/-5/0 dB |
| Rauschmaß / Noise figure | typ. 6 dB |
| Ausgangspegel / Output level (CTB, CSO (EN60728-3) 0/5 dB interstage equalizer | 106/108 dBµV |
| Upstream | |
| Frequenzbereich / Frequency range | 5 ... 65 MHz |
| Verstärkung / Gain | 27/-5 dB |
| Pegelsteller / Attenuator | Eingang / Input: -10/0 dB Ausgang / Output: 0...18 dB |
| Entzerrer / Equalizer | -6/-3/0 dB |
| Ausgangspegel / Output level (IMD3=60 dB (EN60728-3); flat) | 114 dBµV (active) 121 dBµV (passive) |
| Rauschmaß / Noise figure |
7 dB
|
| Netzteil / Power supply | |
| Spannungsversorgung / Operating voltage |
100 ... 250 VAC, 50/60 Hz
|
| Leistungsaufnahme / Power consumption |
7 W
|
| Abmessungen (B x H x T) verpackt / Dimensions (W x H x D) packed |
185 x 91 x 47 mm
|
