Combines a UHF-channel with an existing distribution network. 1 channel + remaining (4-862 MHz).
- exact factory alignment
- excellent frequency response over full spectrum 4-862 MHz
| Technische Daten / Technical data | |||
| Typ / Type |

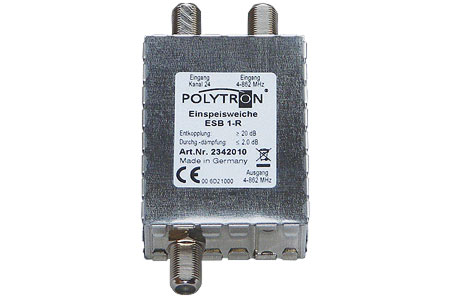

ESB 1-R
|
ESB 2-R
|
ESB 3-R
|
| Artikel-Nr. / Article no. |
2342010
|
2342020
|
2342030
|
| Eingang 1 / Input 1 [1 Kanal / channel] |
K21-32
|
K33-44
|
K45-K54
|
| Eingang 2 / Input 2 |
4-862 MHz
|
||
| Durchgangsdämpfung / Through loss [1 Kanal / channel] |
< 5 dB ; 4-862 MHz: < 1 dB
|
||
| Sperrdämpfung / Rejection loss [1 Kanal / channel] |
> 12 dB ; ± 16 MHz: > 20 dB
|
||
| Frequenz am Ausgang / Frequency at the output |
4 - 862 MHz
|
||
| Amplitudenfrequenzgang / Amplitude frequency response |
4-862 MHz: 1 dB
|
||
| Maße / Dimensions |
46 x 64 x 21 mm
|
||
| Gewicht / Weight |
0,08 kg
|
||
