Stand-alone multiswitches for distribution of 4 SAT IF polarisations and terrestrial signals. The IF levels are selected with the switching criterias 13/18 V, 0/22 kHz.
- 4 SAT and 1 terrestrial TV inputs
- usage of Quad or Quattro LNBs
- energy efficient
- built-in amplifier to compensate cable loss
- switching commands 13/18 V, 0/22 kHz
- built in 22 kHz generator
- high return loss
- high isolation between the polarisations
| Technische Daten / Specifications | |||||
| Typ / Type |
PSG 508 Q II
|
PSG 512 Q II
|
PSG 516 Q II
|

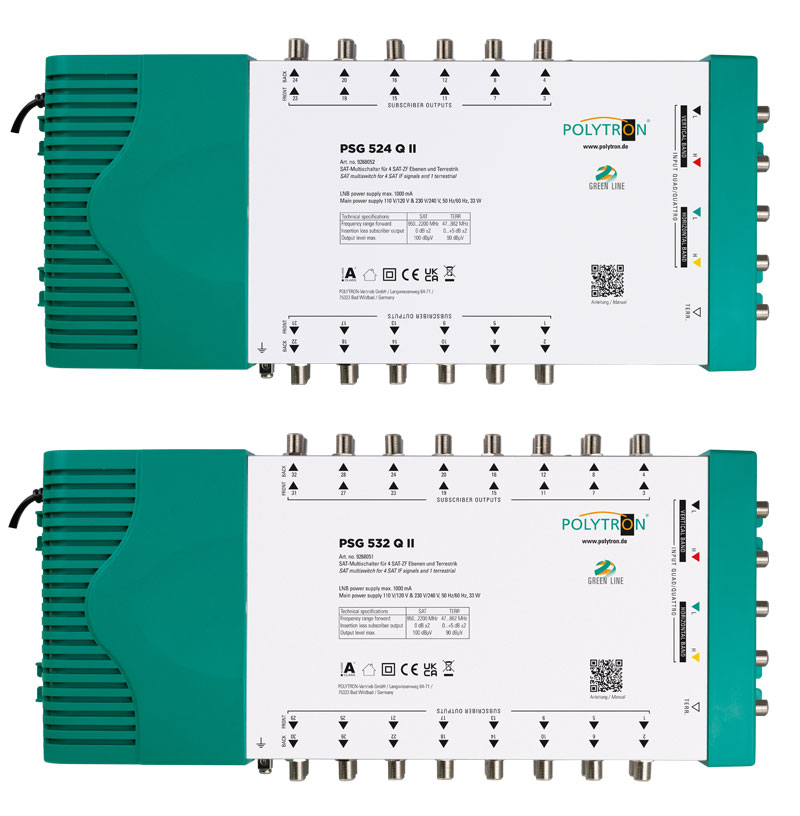

PSG 524 Q II
|
PSG 532 Q II
|
| Artikel-Nr. / Article no. |
9268031
|
9268032
|
9268033
|
9268052
|
9268051
|
| Eingänge / Inputs |
4 SAT, 1 TERR
|
||||
| Ausgänge / Outputs |
8
|
12
|
16
|
24
|
32
|
| Frequenzbereich / Frequency range |
47...862 MHz / 950...2150 MHz
|
||||
| Anschlussdämpfung Insertion loss SAT 950...2150 MHz |
8 dB
|
0...-5 dB
|
|||
| Anschlussdämpfung Insertion loss Terr. 47...862 MHz |
1 dB
|
0 dB
|
|||
| Schaltkriterien Switching commands |
14 V / 18 V / 0/22 kHz
|
||||
| Entkopplung Isolation Horz. / Vert. |
25 dB
|
28 dB
|
|||
| Entkopplung Isolation SAT / TERR |
35 dB
|
30 dB
|
|||
| Ausgangspegel / Output level |
SAT: 100 dBµV ; TERR: 85 dBµV
|
SAT: 100 dBµV
TERR: 90 dBµV |
|||
| LNB-Stromversorgung / LNB supply |
max. 600 mA
|
max. 1000 mA
|
|||
| Eingebauter 22 kHz Generator Built-in 22 kHz generator |
Ja / Yes ; 22 kHz ± 4 ; 0,75 Vpp ± 0,25
|
||||
| Betriebsspannung / Operating voltage |
90...264 VAC, 47...63 Hz
|
||||
| Maße (B x H x T) Dimensions (W x H x D) [mm] |
230 x 120 x 60
|
285 x 180 x 60
|
285 x 180 x 60
|
385 x 180 x 60
|
385 x 180 x 60
|
