The device is ideal for use in CATV, DOCSIS, and FTTH applications.

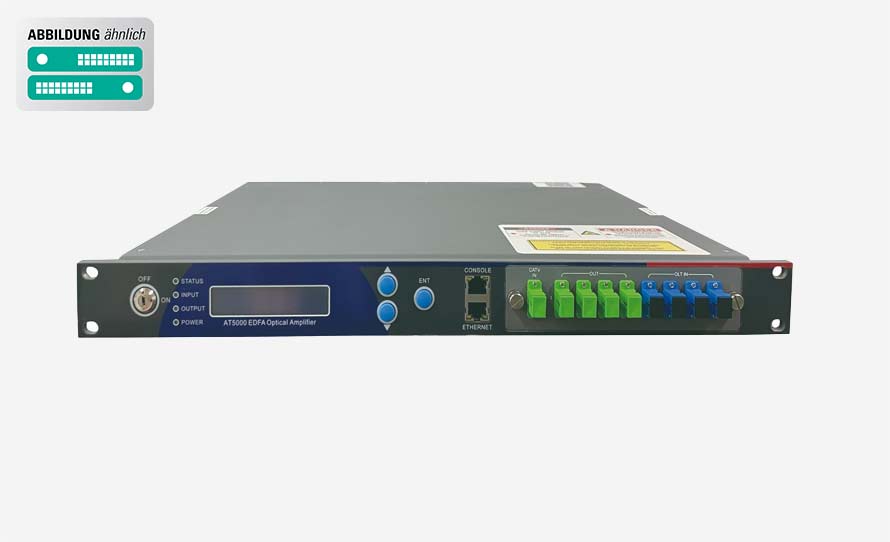

The AT-52-EDFA-20-04X-SC-AC2 optical amplifier is an erbium-doped fiber amplifier with 4x 20 dBm output and is designed for setting up an optical distribution system.
The device has a built-in WDM (Wavelength Division Multiplex) and thus enables the interconnection of CATV and data signals. The EDFA is suitable for XGS-PON and GPON applications. The devices can be used optimally in CATV, DOCSIS, and FTTH applications.
This allows CATV signals to be transmitted over long distances or distributed in large FTTH applications. Operation and monitoring are carried out via SNMP/web browser.
- CATV wavelength: 1545-1565 nm
- XGS-PON wavelengths: 1270 nm/1577 nm
- GPON wavelengths: 1310 nm/1490 nm
- 1 CATV input, 4 XGS-PON/GPON inputs
- 4 outputs (XGS-PON/GPON + CATV combined)
- Optical input level: -10...+10 dBm
- Redundant power supply (hot-swap)
- Optical connections XGS-PON/GPON inputs + CATV+COMMON: SC/APC
- Additional EDFAs on request
| View product in our shop |
| Operating manual |
|
|
|
| Typ / Type |
AT-52-EDFA-20-04X-SC-AC2
|
| Artikel-Nr. / Article no. |
9418107
|
| Optische-Spezifikationen / Optical specifications | |
| Wellenlänge / Wavelength CATV |
1545...1565 nm
|
| Wellenlänge / Wavelength GPON / XGS-PON |
1310/1490 nm (CWDM) / 1270/1577 nm (CWDM)
|
| Eingangsleistung / Input power |
-10...+10 dBm
|
| Ausgangsleistung / Output power (-4 dB einstellbar / adjustable) |
20 dBm
|
| Stabilität / Stability |
±0,3 dB
|
| Durchgangsdämpfung / Through loss |
0,8 dB
|
| Optischer Switch / Optical switch |
X
|
| Schaltzeit / Switching time |
/
|
| Polarisationsmodendispersion (PMD) |
0,3 ps
|
| Polarisationsabhängige Verluste |
0,3 dB
|
| Polarisationsabhängiger Gewinn |
0,4 dB
|
| Entkopplung / Isolation (CATV/OLT) |
40 dB
|
| Rückflussdämpfung / Return loss |
45 dB
|
| Anzahl Ports / Number of ports |
4
|
| Konnektor / Connector |
SC/APC (CATV, PON, Common)
|
| Allgemeine Spezifikationen / General specifications | |
| Management Schnittstelle / Interface |
RJ45 Web, SNMP
|
| Betriebstemperatur / Operating Temperature |
-5...65 °C
|
| Rel. Luftfeuchtigkeit / Operating relative humidity |
5...95 % (nicht kondensierend / non-condensing)
|
| Stromversorgung / Power supply |
90...265 VAC (dual redundant hot plug AC supplies)
|
| Leistungsaufnahme / Power consumption |
100 W (dual power supply, 1+1 standby, 40 dBm)
|
| Maße (BxLxH) / Dimensions (WxDxH) |
483 x 370 x 44 mm (2 RU)
|
