SNMP/HTTP monitoring, configuration and control

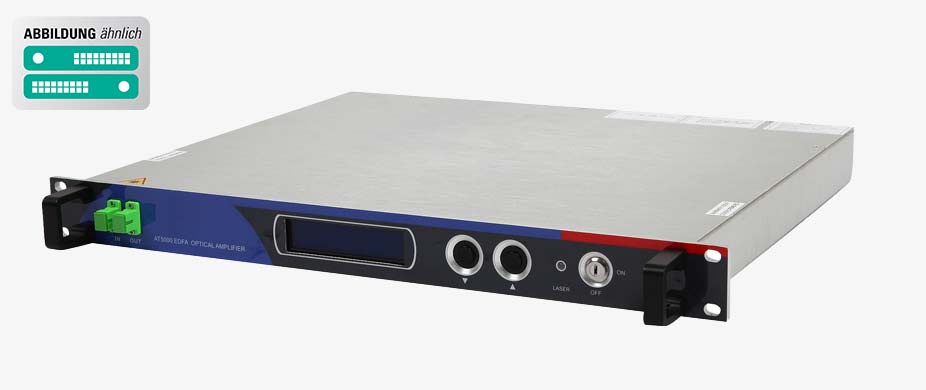

The AT-50-EDFA-20-2 optical amplifier uses Erbium-Doped Fiber Amplification (EDFA) technology, 2x 20 dBm output and represents a flexible and scalable optical amplifier solution.
They are ideal for transmitting high-quality video signals in optical distribution systems. The high optical output power is 20 dBm. The number of output ports can be selected from 1 to 8. This allows the multiport amplifiers to transmit CATV signals even over long distances or in large-scale FTTH applications.
- High performance with low noise
- Suitable for analog and digital signal transmission (CATV, DOCSIS, FTTH)
- Output power 13-20 dBm per port
- Number of outputs: 1, 2, 4, 8 (16 and 32 available upon request)
- Wavelength range: 1540-1563 nm
- LC display for local monitoring on the device
- Two redundant, hot-swappable AC power supplies (DC available upon request)
- Local or remote access for monitoring and configuration
- SNMP/HTTP monitoring, configuration, and control
20 dBm output level
Types: AT-50-EDF20-1, AT-50-EDFA-20-2, AT-50-EDFA-20-4, AT-50-EDFA-20-8A-
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Typ / Type |
AT-50-EDFA-20-2
|
| Artikel-Nr. / Article no. |
9418027
|
| Optische-Spezifikationen / Optical specifications | |
| Wellenlänge / Wavelength |
1540...1563 nm
|
| Eingangsleistung / Input power |
-8...+10 dBm (typ. +3 dBm)
|
| Ausgangsleistung / Output power |
20 dBm (-3 dB einstellbar / adjustable)
|
| Stabilität / Stability |
±0,3 dB
|
| Polarisationsmodendispersion (PMD) |
0,5 ps
|
| Polarisationsabhängige Verluste |
0,3 dB
|
| Polarisationsabhängiger Gewinn |
0,4 dB
|
| Entkopplung / Isolation (Input/Output) |
30 dB
|
| Rückflussdämpfung / Return loss |
45 dB
|
| Anzahl Ports / Number of ports |
2
|
| Konnektor / Connector |
SC/APC
|
| Allgemeine Spezifikationen / General specifications | |
| Management Schnittstelle / Interface |
RJ45 Web, RS232
|
| Betriebstemperatur / Operating Temperature |
-5...65 °C
|
| Rel. Luftfeuchtigkeit / Operating relative humidity |
5...95 % (nicht kondensierend / non-condensing)
|
| Stromversorgung / Power supply |
90...265 VAC (dual redundant hot plug AC supplies)
|
| Leistungsaufnahme / Power consumption |
50 W (o/p <27 dBm), 80 W (o/p <40 dBm)
|
| Maße (BxLxH) / Dimensions (WxDxH) |
483 x 256 x 44 mm
|
